Part Number: ATmega88V

MFG: ATMEL

Package Cooled: QFP

Description: The ATmega48/88/168 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing...

ATmega88V General Description

The ATmega48/88/168 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega48/88/168 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

ATmega88V Maximum Ratings

Operating Temperature........................... -55°C to +125°C
Storage Temperature ............................. -65°C to +150°C
Voltage on any Pin except RESET
with respect to Ground ............................-0.5V to VCC+0.5V
Voltage on RESET with respect to Ground......-0.5V to +13.0V
Maximum Operating Voltage ......................................... 6.0V
DC Current per I/O Pin .............................................40.0 mA
DC Current VCC and GND Pins................................ 200.0 mA

*NOTICE: Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ATmega88V Features

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
131 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
Up to 20 MIPS Throughput at 20 MHz
On-chip 2-cycle Multiplier
• Non-volatile Program and Data Memories
4/8/16K Bytes of In-System Self-Programmable Flash (ATmega48/88/168)
Endurance: 10,000 Write/Erase Cycles
Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
256/512/512 Bytes EEPROM (ATmega48/88/168)
Endurance: 100,000 Write/Erase Cycles
512/1K/1K Byte Internal SRAM (ATmega48/88/168)
Programming Lock for Software Security
• Peripheral Features
Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture
Mode
Real Time Counter with Separate Oscillator
Six PWM Channels
8-channel 10-bit ADC in TQFP and QFN/MLF package
6-channel 10-bit ADC in PDIP Package
Programmable Serial USART
Master/Slave SPI Serial Interface
Byte-oriented 2-wire Serial Interface (Philips I2C compatible)
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
Interrupt and Wake-up on Pin Change
• Special Microcontroller Features
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated Oscillator
External and Internal Interrupt Sources
Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and
Standby
• I/O and Packages
23 Programmable I/O Lines
28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF
• Operating Voltage:
1.8 - 5.5V for ATmega48V/88V/168V
2.7 - 5.5V for ATmega48/88/168
• Temperature Range:
-40°C to 85°C
• Speed Grade:
ATmega48V/88V/168V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V
ATmega48/88/168: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V
• Low Power Consumption
Active Mode:
250 A at 1 MHz, 1.8V
15 A at 32 kHz, 1.8V (including Oscillator)
Power-down Mode: 0.1A at 1.8V

ATmega88V Connection Diagram

ATmega88V datasheet

ATMEGA88V
PDF/DataSheet Download

Datasheet: ATMEGA88V
File Size: 2816923 KB
Manufacturer: ATMEL [ATMEL Corporation]
Click here to Download

·ATM UTOPIA
Lucent Technologies
Slave Core V2.0(异步传输模式从属内核V2.0)
118420 KB
·ATM128
ATMEL [ATMEL Corporation]
8-bit Microcontroller with 128K Bytes In-System Programmable Flash
369528 KB
·ATM-25
Fuse
30615 KB
·ATM3224C
AZDISPLAYS [AZ Displays]
COMPLETE LCD SOLUTIONS - TFT Driver Board
61916 KB
·ATM3224C-NC-FTH
AZDISPLAYS [AZ Displays]
COMPLETE LCD SOLUTIONS
827356 KB
·ATM43D-446778
ETC
ATM43D-446778_ETC.pdf
157904 KB
·ATM4823A
AZDISPLAYS [AZ Displays]
COMPLETE LCD SOLUTIONS
1255057 KB
·ATMEGA103
ATMEL [ATMEL Corporation]
8-Bit Microcontroller with 64K/128K Bytes In-System Programmable Flash
287528 KB

Related Part Number

ATmega88V Relative Products

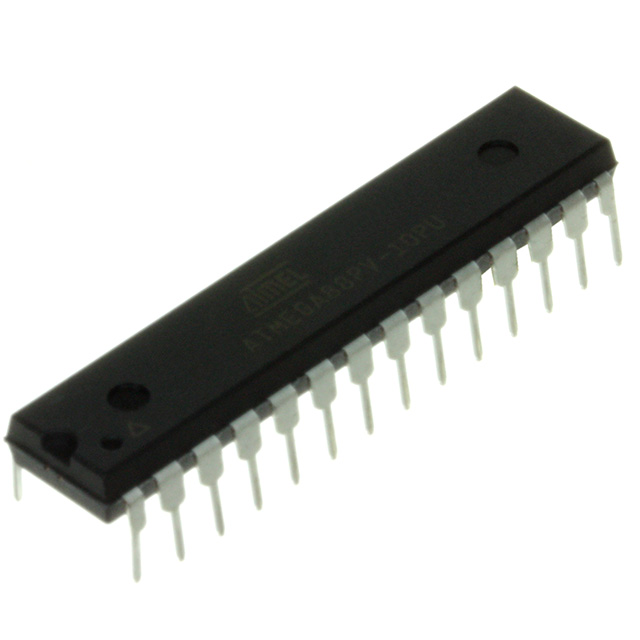

ATMEGA88PV-10PU
MCU AVR 8K ISP FLASH 10MHZ 28DIP
ATMEGA88PV-10MU
MCU AVR 8K ISP FLASH 10MHZ 32QFN
ATMEGA88PV-10AU
MCU AVR 8K ISP FLSH 10MHZ 32TQFP
ATMEGA8-8PU
The ATMEGA8-8PU is one member of the ATMEGA8 series.The ATmega8 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1 MIPS per ...

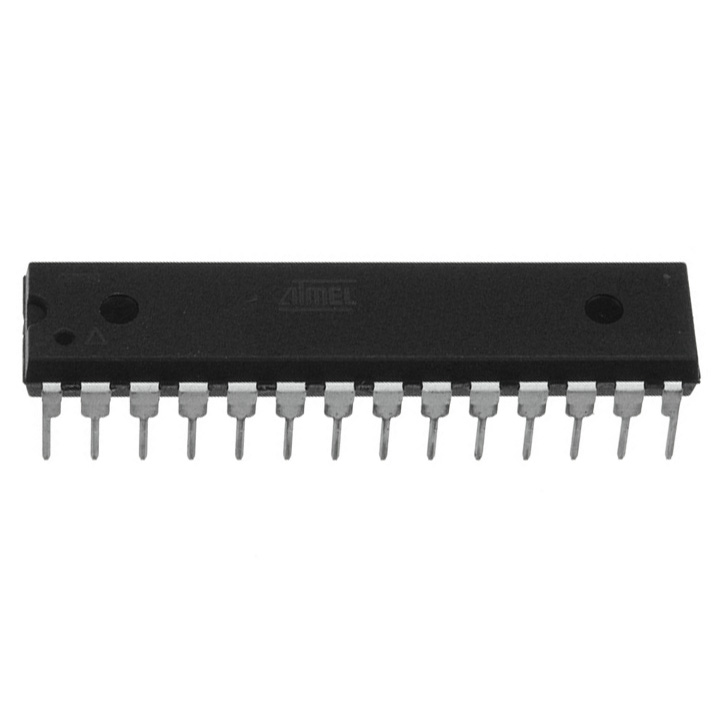

ATMEGA88PA-PU
The ATMEGA88PA-PU is one member of the ATMEGA88PA series.The ATmega88PA is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega88PA achieves throughputs app...

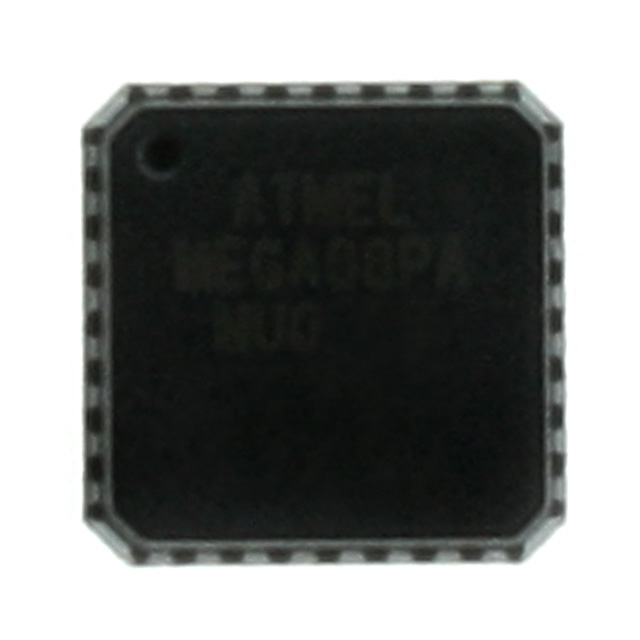

ATMEGA88PA-MU
