Part Number: ATtiny85

MFG: ATMEL

Package Cooled: SOP-8P

D/C: N/A

Description: The ATtiny25/45/85 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architectu...

ATtiny85 General Description

The ATtiny25/45/85 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny25/45/85 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

ATtiny85 Maximum Ratings

Operating Temperature............................... -55°C to +125°C
Temperature ................................................-65°C to +150°C
Voltage on any Pin except RESET
with respect to Ground .............................-0.5V to VCC+0.5V
Voltage on RESET with respect to Ground......-0.5V to +13.0V
Maximum Operating Voltage ...........................................6.0V
DC Current per I/O Pin ............................................. 40.0 mA
DC Current VCC and GND Pins................................ 200.0 mA

ATtiny85 Features

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
120 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
• Non-volatile Program and Data Memories
2/4/8K Byte of In-System Programmable Program Memory Flash (ATtiny25/45/85) Endurance: 10,000 Write/Erase Cycles
128/256/512 Bytes In-System Programmable EEPROM (ATtiny25/45/85) Endurance: 100,000 Write/Erase Cycles
128/256/512 Bytes Internal SRAM (ATtiny25/45/85)
Programming Lock for Self-Programming Flash Program and EEPROM Data Security
• Peripheral Features
8-bit Timer/Counter with Prescaler and Two PWM Channels
8-bit High Speed Timer/Counter with Separate Prescaler 2 High Frequency PWM Outputs with Separate Output Compare Registers Programmable Dead Time Generator
USI Universal Serial Interface with Start Condition Detector
10-bit ADC 4 Single Ended Channels 2 Differential ADC Channel Pairs with Programmable Gain (1x, 20x) Temperature Measurement
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
• Special Microcontroller Features
debugWIRE On-chip Debug System
In-System Programmable via SPI Port
External and Internal Interrupt Sources
Low Power Idle, ADC Noise Reduction, and Power-down Modes
Enhanced Power-on Reset Circuit
Programmable Brown-out Detection Circuit
Internal Calibrated Oscillator
• I/O and Packages
Six Programmable I/O Lines
8-pin PDIP, 8-pin SOIC and 20-pad QFN/MLF
• Operating Voltage
1.8 - 5.5V for ATtiny25/45/85V
2.7 - 5.5V for ATtiny25/45/85
• Speed Grade
ATtiny25/45/85V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V
ATtiny25/45/85: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V
• Industrial Temperature Range
• Low Power Consumption
Active Mode: 1 MHz, 1.8V: 300 A
Power-down Mode: 0.1A at 1.8V

ATtiny85 Connection Diagram

ATtiny85 datasheet

ATTINY85
PDF/DataSheet Download

Datasheet: ATTINY85
File Size: 447769 KB
Manufacturer: ATMEL
Click here to Download

·ATT17128A-G8
Configuration EPROM
589913 KB
·ATT17128A-M20
Configuration EPROM
589913 KB
·ATT17128A-PD8
Configuration EPROM
593739 KB
·ATT17128A-PD8I
Configuration EPROM
593739 KB
·ATT17128A-SO8
Configuration EPROM
434532 KB
·ATT17128A-SO8I
Configuration EPROM
434532 KB
·ATT1736A-G8
Configuration EPROM
589913 KB
·ATT1736A-M20
Configuration EPROM
589913 KB

Related Part Number

ATtiny85 Relative Products

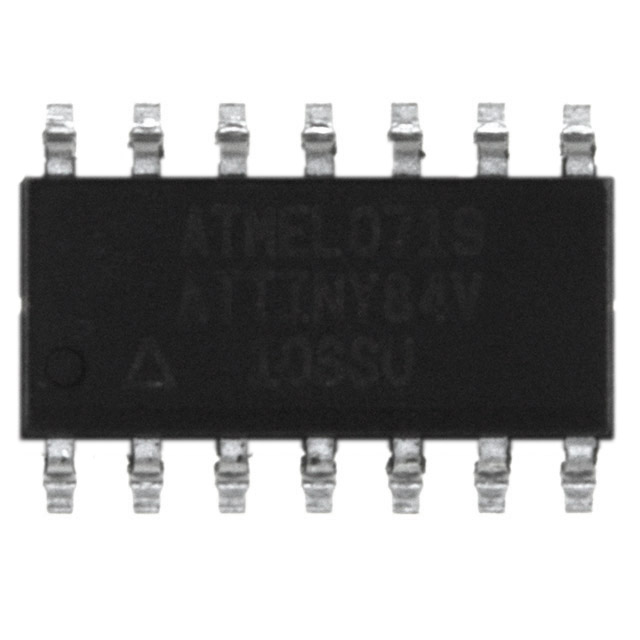

ATTINY84V-10SSU
