AU6391

Features: 􀁺 Supports USB 2.0 specification and USB Device Class Definition for Mass Storage, Bulk-Transport V1.0􀁺 Supports ATA/ATAPI-6 specification Revision 1.0􀂄 PIO mode 0~4􀂄 UDMA mode 2/4􀁺 Supports ATA/ATAPI device configured in master or slave mode&...

product image

AU6391 Picture
See larger image
SeekIC No. : 004291675 Detail

AU6391: Features: 􀁺 Supports USB 2.0 specification and USB Device Class Definition for Mass Storage, Bulk-Transport V1.0􀁺 Supports ATA/ATAPI-6 specification Revision 1.0􀂄 PIO mode...

AU6391 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AU6391
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁺 Supports USB 2.0 specification and USB Device Class Definition for Mass Storage, Bulk-Transport V1.0
􀁺 Supports ATA/ATAPI-6 specification Revision 1.0
􀂄     PIO mode 0~4
􀂄     UDMA mode 2/4
􀁺 Supports ATA/ATAPI device configured in master or slave mode
􀁺 Supports 48-bit addressing for large capacity hard drive
􀁺 Hardware DMA engine integrated for performance enhancement
􀁺 Work with default driver from Windows ME/2000/XP and Mac OS X; Windows 98/2000(SP1/SP2) and Mac OS 9 are supported by vendor driver from Alcor.
􀁺 One LED pin for activities indication
􀁺 Self-powered device
􀁺 48pin LQFP package
􀁺 Runs at 12MHz clock.


Application

Following is the application diagram of a typical removable USB2.0 ATA/ATAPI device. Users can exchange the digital content between ATA/ATAPI device and PC (Notebook).




Pinout

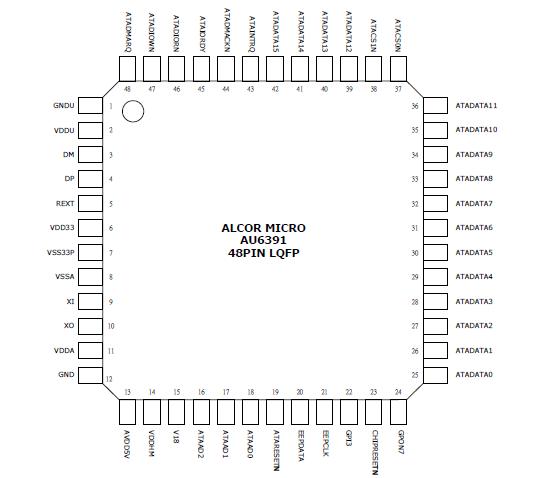

Connection Diagram


Specifications

SYMBOL
PARAMETER
RATING
UNITS
VCC
 Power Supply
-0.3 to VCC+0.3
V
VIN
 Input Voltage
-0.3 to 3.6
V
VOUT
 Output Voltage
-0.3 to VCC+0.3
V
TSTG
 Storage Temperature
-40 to 150



Description

The AU6391 is a single chip USB 2.0 to ATA/ATAPI controller. It is used as the primary controller of an external USB 2.0 hard disk or CD/DVD box.

To maximize the data throughput and achieve the best compatibility, the AU6391 is equipped with Alcor's proprietary automatic speed negotiation (ASN) algorithm. The ASN algorithm allows AU6390 to select optimized operating mode that device can best support from PIO mode 0~4 and Ultra DMA mode 2/4.
