AU6840
-
Suppliers
DataSheet
General Description
AU6840 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Power Supply Voltage (IO) |
VCC_IO_AB |
-0.5 to 4.6 |
V |
| Power Supply Voltage (Core) |
VCC_CORE_AB |
0 to 2 |
V |
| Power Supply Voltage (PLL) |
VCC_PLL_AB |
-0.2 to 2.2 |
V |
| Power Supply Voltage (DAC) |
VCC_DAC_AB |
-0.3 to 3.6 |
V |
| Storage Temperature |
TEMP_STG |
-20 to 125 |
AU6840 Features
· Low power 0.18um CMOS technology
· Power supply 1.8V/3.3V, power consumption 125mW
· Enhanced 8051, up to 10 times faster than industry standard 8051
· USB2.0 full-speed host controller
· SD/MMC card controller (AU6840 only)
· Support MPEG 1/2/2.5 layer3 decoding
· Support 9 sampling frequency: 8kHz/11.025kHz/12kHz/16kHz/22.05kHz/24kHz/32kHz/44.1kHz/48kHz
· Support data rate from 32kbps to 320kbps, including VBR
· Embedded sound equalizer
· Support tag format ID3v1 and ID3v2.4
· Support FAT16/FAT32 file system
· Embedded 16-bit audio DAC
· Embedded headphone amplifier
· IR Remote control support
· GPIO for various purposes
· Support in-system debug through external emulator
· Support firmware upgrade through U-disk
· Power supply 1.8V/3.3V, power consumption 125mW
· Enhanced 8051, up to 10 times faster than industry standard 8051
· USB2.0 full-speed host controller
· SD/MMC card controller (AU6840 only)
· Support MPEG 1/2/2.5 layer3 decoding
· Support 9 sampling frequency: 8kHz/11.025kHz/12kHz/16kHz/22.05kHz/24kHz/32kHz/44.1kHz/48kHz
· Support data rate from 32kbps to 320kbps, including VBR
· Embedded sound equalizer
· Support tag format ID3v1 and ID3v2.4
· Support FAT16/FAT32 file system
· Embedded 16-bit audio DAC
· Embedded headphone amplifier
· IR Remote control support
· GPIO for various purposes
· Support in-system debug through external emulator
· Support firmware upgrade through U-disk

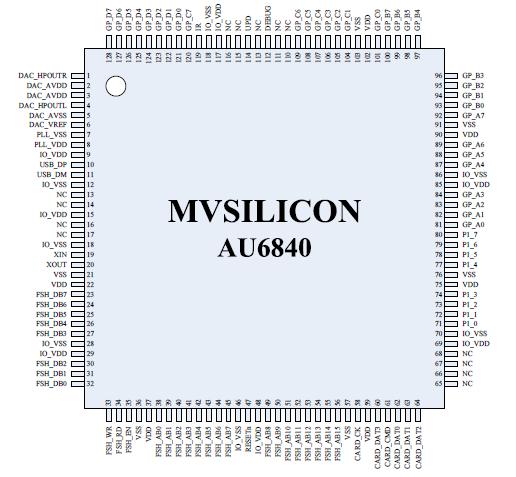

AU6840 Connection Diagram
AU6840
