Product Details

Description



Features:

·Fully compliant with USB v1.1 specification and USB Device Class Definition for
   Mass Storage, Bulk-Transport v1.0
·Fully compliant with Secure Digital (SD) v1.0 Specification.
·Work with default driver from Windows ME, Windows 2000, Windows XP, Mac
   OS 9.1, Mac OS X; Linux, Windows 98 and WinCE 3.0 are supported by vendor
   driver from Alcor.
·Ping-pong FIFO implementation for concurrent bus operation to increase bandwidth
·Support multiple sectors transfer up to 4G bytes to optimize performance
·Support optional external EEPROM for USB VID, PID and string customization
·LED for bus activity monitoring
·Runs at 12MHz
·Built-in 3.3V regulator
􀁺 28-pin SSOP package

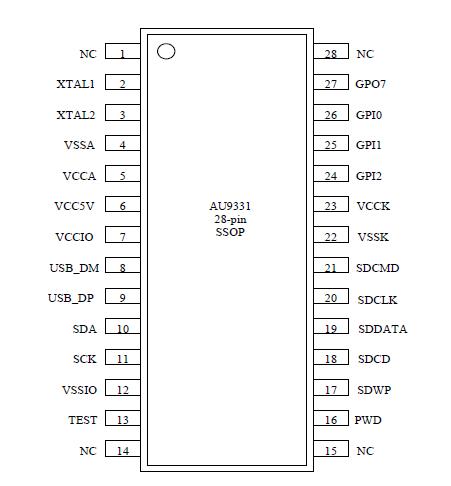

Pinout

  Connection Diagram


Description

The AU9331 is an integrated USB Secure Digital (SD) card reader controller. It supports Secure Digital (SD) and Multimedia Card (MMC) with automatic card type detection capability. It can be used as a removable storage disk in enormous data exchange applications between PC and PC or PC and various consumer electronic devices.

The AU9331 can read Secure Digital card's contents created by handheld consumer electronic devices such as digital camera, MP3 player, PDA and mobile phone.., etc. It provides a faster and convenient way of data transfer scheme to meet the emerging need of a data exchange center between PC and various consumer devices. With AU9331, users' experience will be further enhanced by the Plug-and-Play nature built into latest operation systems such as Windows XP and MacOS X.

Because of the multiple sectors transfer up to 4G bytes and the single chip integration, AU9331 is the most powerful and cost efficient SD reader controller solution in the market.
