General Description
AV101-12 General Description
The AV101-12 is a current controlled variable attenuator from Alpha's series of HIP3™ components. It is designed to meet the wide dynamic range required in spread spectrum wireless base station applications. A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package reducing size and assuring consistency from part to part.
AV101-12 Maximum Ratings
|
Characteristic |
Value |
| RF Input Power |
0.5 W CW, 4 W @ 12.5% Duty Cycle |
| Control Current |
50 mA Each Diode |
| Operating Temperature |
-40 to +85°C |
| Storage Temperature |
-40 to +85°C |
| Maximum Reverse Diode Voltage |
-10 V |
| Electrostatic Discharge |
+125 V |
AV101-12 Features
· +50 dBm IP3 Typical
· Low Loss 1 dB Typical
· Attenuation 30 dB Typical
· Good VSWR <1.5:1 Typical
· Small SOIC-8 Package
· Low Loss 1 dB Typical
· Attenuation 30 dB Typical
· Good VSWR <1.5:1 Typical
· Small SOIC-8 Package

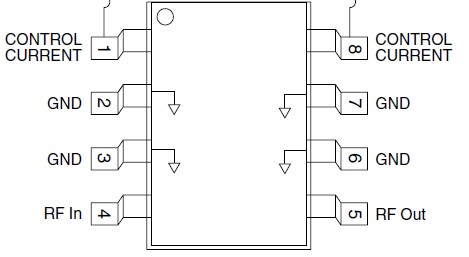

AV101-12 Connection Diagram
AV101-12
