General Description
AV102-12 General Description
The AV102-12 is a current controlled variable attenuator from Alpha's series of HIP3™ components. It is designed to meet the wide dynamic range required in spread spectrum wireless base station applications. A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package reducing size and assuring consistency from part to part.
AV102-12 Maximum Ratings
Characteristic |
Value |
| RF Input Power | 0.5 W CW, 4 W @ 12.5% Duty Cycle |
| Control Current | 50 mA Each Diode |
| Operating Temperature | -40 to +85°C |
| Storage Temperature | -40 to +85°C |
| Maximum Reverse Diode Voltage | -10 V |
| Electrostatic Discharge | +125 V |
AV102-12 Features
+50 dBm IP3 Typical
Low Loss 1 dB Typical
Attenuation 30 dB Typical
Good VSWR <1.5:1 Typical
Small SOIC-8 Package
Low Loss 1 dB Typical
Attenuation 30 dB Typical
Good VSWR <1.5:1 Typical
Small SOIC-8 Package

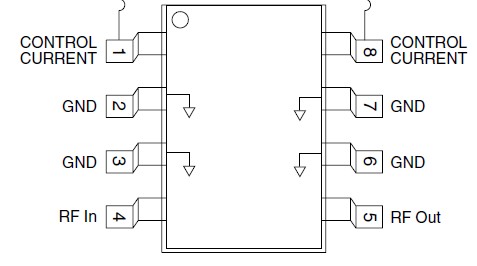

AV102-12 Connection Diagram
AV102-12
PDF/DataSheet Download
- Datasheet: AV102-12
- File Size: 820648 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
