Product Details

Description

Features:

• Maximum supply voltage : ±18V
• Large DC Voltage Gain : 100dB
• Bandwidth (unity gain) : 1 MHz
• Short-Circuit Protection
• Wide common-mode and differential ranges
• No frequency compensation required
• Low power consumption
• No latch-up
• Gain and phase math between amplifiers

Application

• Amplifiers
• Filters
• Analog Circuit

Pinout

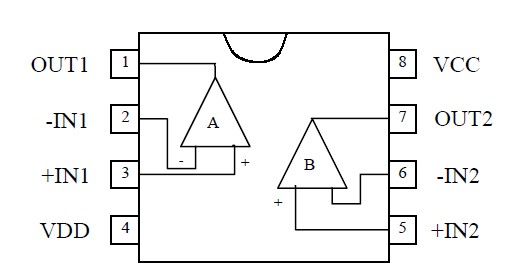

Connection Diagram

Specifications

Symbol	Parameter	Value		Unit
V_CC	Supply Voltage	±18		V
P_d	Power Consumption	DIP8	500	mw
		SIP8	800
		SOP8	300
V_ID	Differential Input Voltage	±15		V
V_I	Common-Mode Input Voltage	±15		V
T_amb	Operating Free-air Temperature Range	0 to +70
T_stg	Storage Temperature Range	-25 to +125

Description

The AV4558 is dual general purpose operational amplifiers. The high common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage follower application.

The devices AV4558 are short circuit protected and the internal frequency compensation ensures stability without external components.
