AWL6153

Features:

• InGaP HBT Technology
• < 3.5% EVM at +25 dBm Output Power (+5 V Supply), with 802.11g Modulation at 54 Mbps Data Rate
• < 3% EVM at +21 dBm Output Power (+3.3 V Supply), with 802.11g Modulation at 54 Mbps Data Rate
• +3 V to +5 V Supply
• High Efficiency
• 4 x 4 x 1.5 mm Surface Mount Module
• 50 - Matched RF Ports for Reduced External Component Count
• Designated Pb-free Packaging




Application

• 802.11g/b WLAN Stations and Client Cards
• 802.11g/b WLAN Access Points

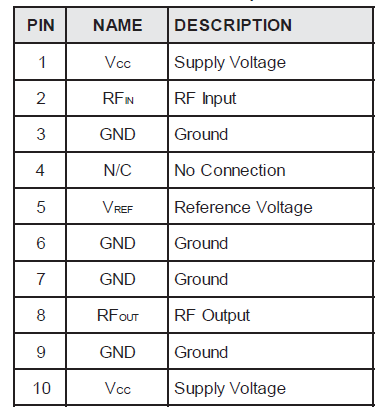

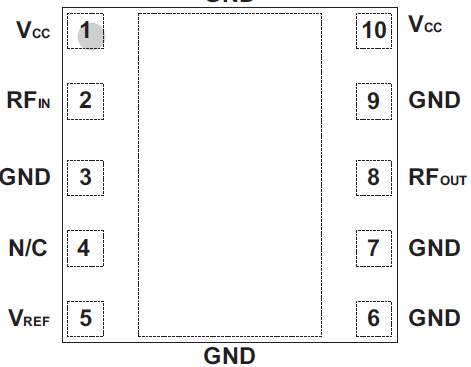

Pinout

Specifications

PARAMETER	MIN	MAX	UNIT
Supply Voltage (VCC)	0	+5.5	V
Reference Voltage (VREF)	0	+3.5	V
RF Input Power (PIN)	-	+10	dBm
Storage Temperature	-40	+150	°C

Freq (GHz)	2.4 - 2.5 GHz
Supply (V)	3.3 5.0
Current (mA)	b: 300 @ Pout = +25 dBm(3.3V) 420 @ Pout = +28 dBm(5V) g: 190 @ Pout = +21 dBm(3.3V) 290 @ Pout =+25(5V)
Gain (dB)	30 30
Output P1dB (dBm)	28 31
Error Vector Magnitude [EVM] @ 54 Mbps	2.5% @ Pout = +21 dBm 3% @ Pout = +25 dBm
Package Size (mm)	4 x 4 x 1.4

Description

The ANADIGICS AWL6153 WLAN Power Amplifier is an easy to use module that delivers high levels of linearity and efficiency for high data rate applications. Designed for the 2.4 GHz WLAN standards, it supports the 54 Mbps data rates specified in IEEE 802.11g.

Requiring a single +3 V to +5 V supply and a reference voltage input, the AWL6153 reduces system power consumption by offering a low leakage current while the amplifier is shut down.

No external circuits are required for RF impedance matching, thus reducing component costs and making it easy to incorporate the device into new designs.

The AWL6153 is manufactured using an advanced InGaP HBT technology that offers state-of-the-art reliability, temperature stability and ruggedness. It is offered in a 4 x 4 x 1.5 mm surface mount module optimized for a 50 system.
