Part Number: AWT921
Description: The AWT921 is a monolithic amplifier for use in communication systems that require high gain and
- Table of contents:
AWT921
-
Suppliers
DataSheet
General Description
AWT921 General Description
The AWT921 is a monolithic amplifier for use in communication systems that require high gain and output intercept point. This device has been specifically designed for multi-carrier and micro-cell base station applications. This deviceis manufactured on a high power MESFET process and has an on-chip bias circuit that does not require highly regulated positive and negative supplies to establish the proper operating point.
AWT921 Maximum Ratings
| PARAMETER | MIN | MAX | UNIT |
| VDD | 0 | +7 | VDC |
| RFIN | 0 | +20 | dBm |
| 1st Stage Supply (VD1) | 0 | +10 | VDC |
| 2nd Stage Supply (VD2) | 0 | +10 | VDC |
| 3rd Stage Voltage (VD3) | 0 | +10 | VDC |
| Negative Supply (VSS) | -7 | 0 | VDC |
| Reference Voltage (VREF) | 0 | +7 | VDC |
| Storage Temperature | -55 | +100 | °C |
| Operating Temperature | -30 | +85 | °C |
AWT921 Features
• High Power Levels
• High Efficiency
• True Surface Mount Package With Integrated Heat Slug
• Internal Bias Circuit Requiring Nominal Input Voltages +10%
• Low Cost
• Off Chip Output Matching Circuit Allows Application Optimization
• High Efficiency
• True Surface Mount Package With Integrated Heat Slug
• Internal Bias Circuit Requiring Nominal Input Voltages +10%
• Low Cost
• Off Chip Output Matching Circuit Allows Application Optimization
AWT921 Typical Application
• Base Station Driver Amplifier
• u-Cell Base Station Output Stage
• Cellular Booster Amplifier
• u-Cell Base Station Output Stage
• Cellular Booster Amplifier

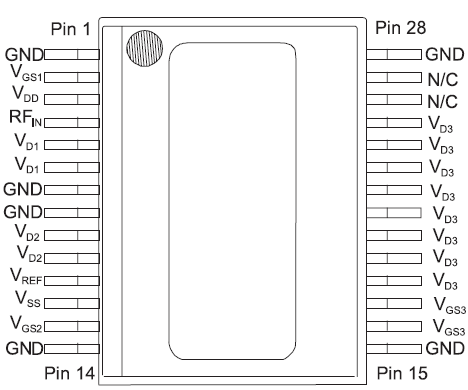

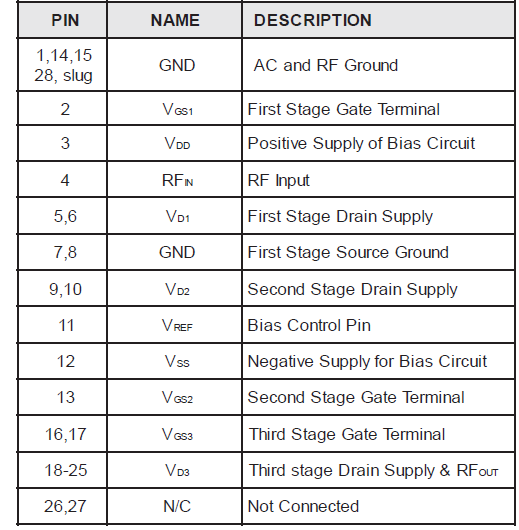

AWT921 Connection Diagram
AWT921
