AX358P

Features:

• Two internally compensated OP amps
• Internally frequency compensated for unity gain
• Short Circuit Protected Outputs
• Wide power supply range: 3V_DC to 32V_DC (Single supply)
• Input common-mode voltage range includes ground
• Large output voltage swing: 0V_DC to Vcc-1.5V_DC

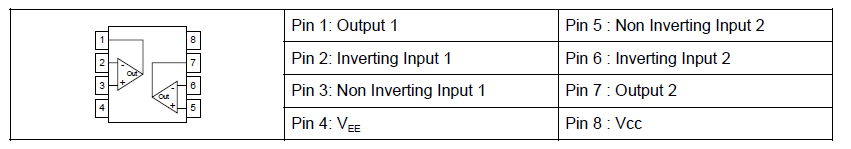

Pinout




Specifications

Symbol	Parameter	Range	Units
VCC	Power Supply Voltage (Single Supply)	32	VDC
VCC, VEE	Power Supply Voltage (Split Supplies)	±16	VDC
VIDR	Input Differential Voltage Range	±32	VDC
VICR	Input Common Mode Voltage Range	-0.3 to +32	VDC
tSC	Output Short Circuit Duration	Continuous
TJ	Junction Temperature	150
Tstg	Storage Temperature Range	-55 to +125
TA	Operating Ambient Temperature Range	0 to +70
PD	Maximum Power Dissipation (DIP-8) Maximum Power Dissipation (SO-8)	800 500	mW

Description

These devices consist of two independent, high gain, internally frequencycompensated operational amplifiers designed operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 32V, and Vcc is at least 1.5V more positive than the input common mode voltage, The low supply-current drain is independent of the magnitude of the power supply voltage.
