Features:

· IEEE 802.3u 100BASE-T, TX, and T4 Compatible
· Single chip local CPU bus 10/100Mbps Fast Ethernet MAC Controller
· NE2000 register level compatible instruction
· Support both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series and MC68K series CPU
· Support both 10Mbps and 100Mbps data rate
· Support both full-duplex or half-duplex operation
· Provides a MII port for both 10/100Mbps operation
· Support EEPROM interface to store MAC address
· External and internal loop-back capability
· Two external 32K*8 Asynchronous SRAMs required for packet buffer
· 128-pin LQFP low profile package
· 25MHz Operation, Dual 5V and 3.3V CMOS process with 5V I/O tolerance. Or pure 3.3V operation


Pinout

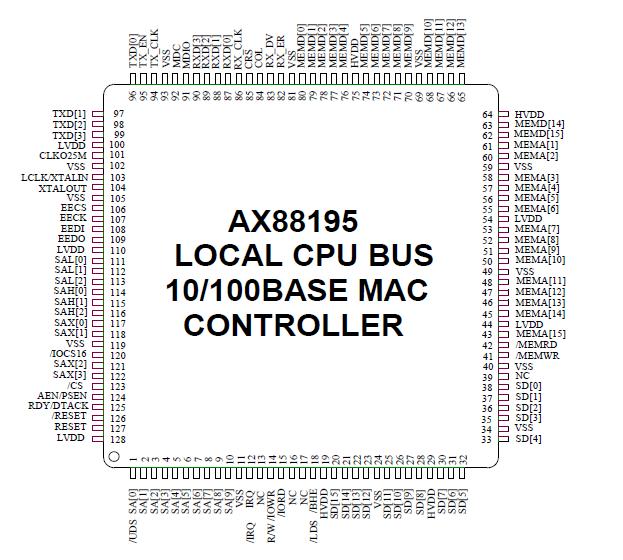

Connection Diagram


Specifications

Description SYM Min Max Units
Operating Temperature Ta 0 +85 °C
Storage Temperature Ts -55 +150 °C
Supply Voltage HVdd -0.3 +6 V
Supply Voltage LVdd -0.3 +4.6 V
Input Voltage HVin
LVin		 -0.3
-0.3		 HVdd+0.5
LVdd+0.5		 V
V
Output Voltage HVout
LVin		 -0.3
-0.3		 HVdd+0.5
LVdd+0.5		 V
V
Lead Temperature (soldering 10 seconds maximum) Tl -55 +220 °C
Note : Stress above those listed under Absolute Maximum Ratings may cause permanent damage to the device.
Exposure to Absolute Maximum Ratings conditions for extended period, adversely affect device life and reliability.
Note : The power supply voltages must always fulfill HVdd >= LVdd inequality.


Description

The AX88195 Fast Ethernet Controller is a high performance and highly integrated local CPU bus Ethernet Controller. The AX88195 supports both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80x86 series, MC68K series CPU and ISA bus. The AX88195 implements both 10Mbps and 100Mbps Ethernet function based on IEEE802.3 / IEEE802.3u LAN standard and supports both 10Mbps/100Mbps media-independent interface (MII) to simplify the design. Two low cost 32k*8 SRAM is required for packet buffer.
