Product Details

Description



Features:

` Support 5 10/100 Mbps Ethernet ports with RMII/MII interface
  Provides packet switching functions between 5 10/100 Mbps, auto-negotiated ports
  Ideal for SOHO switches and its application
` Build in 5-ports 10/100Mbps Switch engine with following features
  Low cost SSRAM interface to reduce system cost
  One or two 64K*32bit SSRAM to buffer packets
  4/8 K MAC address look up Table is supported
  Address mapping of look up table can be linear or use hash algorithm
  Auto learning and filtering
  Aging the look up table is supported optionally
  Aging time can be 1min to 640 mins 7 steps
  Three forwarding modes are supported : Storeand-Forward, Fragment-Free and Auto Forward which is based on network quality
  Flow-control is supported optionally
  802.3x flow control is supported when running infull-duplex mode
  Back-pressure base flow control is supported when running in half-duplex mode
  Ext. Buffer Memory auto testing
  Routing and Learning at wire speed (148800 packets/sec at 100Mbps)
` LED display buffer utilization (%) for whole system and external SSRAM test.
` Power on LED diagnosis. All the LED display will follow the "ON-OFF-ON-OFF-Normal" operation procedure during/after power on reset
` 60MHz Operation, 3.3volt, 208-pin PQFP


Application

SOHO Ethernet Switch
IP Router


Pinout

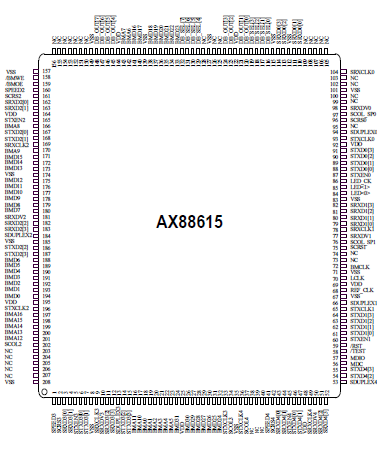

Connection Diagram


Specifications

Description SYM Min Max Units
Operating Temperature Ta 0 +70 °C
Storage Temperature Ts -55 +150 °C
Supply Voltage Vcc -0.3 +4.0 V
Input Voltage Vin -0.3

 Vdd+0.5 V
Output Voltage Vout -0.3
 Vdd+0.5 V
Lead Temperature (soldering 10 seconds maximum) Tl -55 +220 °C



Description

The AX88615 is a 5-ports 10/100 Mbps Ethernet switch with MII PHY or RMII PHY. It is design for low cost dumb Switch application, e.g. SOHO Ethernet Switch, with low cost 64K*32 SSRAM buffer memory.
