AZ100EL11

Features:

• 265ps Propagation Delay
• 5ps Skew Between Outputs
• High Bandwidth Output Transitions
• 75k Internal Input Pulldown Resistors
• Direct Replacement for ON Semiconductor MC10EL11 & MC100EL11

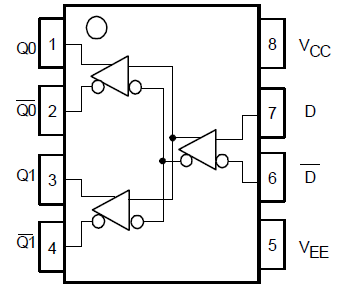

Pinout




Specifications

Symbol	Characteristicc	Rating	Unit
VCC	PECL Power Supply (VEE = 0V)	0 to +8.0	Vdc
VI	PECL Input Voltage (VEE = 0V)	0 to +6.0	Vdc
VEE	ECL Power Supply (VCC = 0V)	-8.0 to 0	Vdc
VI	ECL Input Voltage (VCC = 0V)	-6.0 to 0	Vdc
IOUT	Output Current --- Continuous	50	mA
	--- Surge	100
TA	Operating Temperature Range	-40 to +85	°C
TSTG	Storage Temperature Range	-65 to +150	°C

Description

The AZ10/100EL11 is a differential 1:2 fanout gate. The device is functionally similar to the E111 device but with higher performance capabilities. Having within-device skews and output transition times significantly improved over the E111, the EL11 is ideally suited for those applications that require the ultimate in AC performance.

The differential inputs of the EL11 employ clamping circuitry to maintain stability under open input conditions.If the inputs are left open (pulled to VEE) the Q outputs will go LOW.
