The AZ10/100EL31 is a master-slave D flip-flop with set and reset. The device is functionally equivalent to the E131 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E131, the EL31 is ideally suited for those applications that require the ultimate in AC performance.
Both set and reset inputs are asynchronous, level triggered signals. Data enters the master section of the flipflop when the clock is LOW. When the clock transitions from LOW to HIGH, the data in the master section transfers into the slave section and through to the outputs.
AZ100EL31 Maximum Ratings
| Symbol | Characteristic | Rating | Unit |
| VCC | PECL Power Supply (VEE = 0V) | 0 to +8.0 | Vdc |
| VI | PECL Input Voltage (VEE = 0V) | 0 to +6.0 | Vdc |
| VEE | ECL Power Supply (VCC = 0V) | -8.0 to 0 | Vdc |
| VI | ECL Input Voltage (VCC = 0V) | -6.0 to 0 | Vdc |
| IOUT | Output Current --- Continuous --- Surge |
50
100 |
mA |
| TA | Operating Temperature Range | -40 to +85 | °C |
| TSTG | Storage Temperature Range | -65 to +150 | °C |
AZ100EL31 Features
• 475ps Propagation Delay
• 2.8GHz Toggle Frequency
• 75k Internal Input Pulldown Resistors
• Direct Replacement for ON Semiconductor MC10EL31 & MC100EL31
• 2.8GHz Toggle Frequency
• 75k Internal Input Pulldown Resistors
• Direct Replacement for ON Semiconductor MC10EL31 & MC100EL31

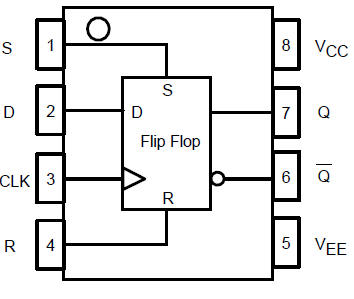

AZ100EL31 Connection Diagram
