AZ100ELT23

Features:

• Green / RoHS Compliant /Lead (Pb) Free package available
• 3.5ns Typical Propagation Delay
• <500ps Typical Output to Output Skew
• Differential PECL Inputs
• CMOS/TTL Outputs
• Flow Through Pinouts
• Direct Replacement for ON Semiconductor MC100ELT23
• Operating Range of 3.0V to 5.5V (For operation down to 2.5V consult AZM)
• Use AZ100ELT23 for 10K Applications

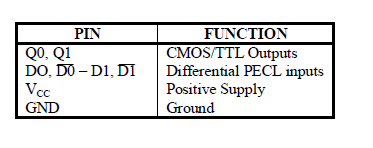

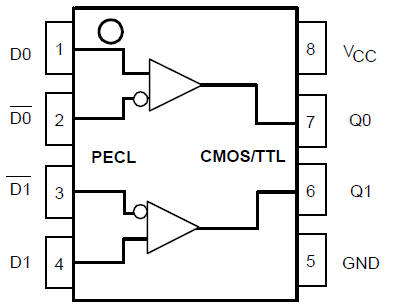

Pinout




Specifications

Symbol	Character	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	7.0	V
TA	Operating Temperature Range (In Free-Air)	-40 to+ 85	°C
TSTG	Storage Temperature Range	-65 to +150	°C

Description

The AZ100ELT23 is a dual differential PECL to CMOS/TTL translator. Because PECL (Positive ECL) levels are used, only VCC and ground are required. The small outline 8-lead packaging and the low skew, dual gate design of the ELT23 makes it ideal for applications that require the translation of a clock and a data signal.

The ELT23 is available in only the ECL 100K standard. Since there are no PECL outputs or an external VBB reference, the ELT23 does not require both ECL standard versions. The PECL inputs are differential; there is no specified difference between the differential input 10K and 100K standards. Therefore the AZ100ELT23 can accept any standard differential PECL input referenced from a VCC of 3.0V to 5.5V.
