AZ10ELT20

Features:

• 0.5ns Typical Propagation Delay
• Differential PECL Outputs
• Flow Through Pinouts
• Operating Range of +3.0V to +5.5V
• Direct Replacement for ON Semi MC100ELT20 & Micrel SY89329V
• Available in 2x2 and 3x3 mm MLP Packages

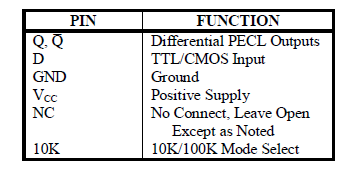

Pinout




Specifications

</table

Symbol	Characteristic	Value	Unit
VCC	DC Supply Voltage (Referenced to GND)	0 to +8.0	V
VIN	Input Voltage	0 to +6.0	V
IOUT	Current Applied to Output in Low Output State - Continuous - Surge	50 100	mA
TA	Operating Temperature Range (In Free-Air)	-40 to +85	°C
TSTG	Storage Temperature Range	-65 to +150	°C

Description

The AZ10/100ELT20 is a CMOS/TTL to differential PECL translator. It operates with a single power supply of +3.0 to +5.5 volts, making it ideal for both LVCMOS/LVTTL and CMOS/TTL applications. The extremely small MLP 8 2x2 mm package makes it ideal for those applications where space, performance and low power are at a premium.

When the D input is left floating, the Q output is forced HIGH, and the Q¯ output is forced LOW.The ELT20 is available in both PECL standards: the AZ10ELT20 is compatible with PECL 10K logic levels while the AZ100ELT20 is compatible with PECL 100K logic levels.
