General Description
AZ386 General Description
The AZ386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20dB to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200dB.
The inputs are ground referenced while the output automatically biases to one-half the supply voltage.The quiescent power drain is only 24mW when operating from a 6V supply, making the AZ386 ideal for battery operation.
AZ386 Maximum Ratings
| Parameter | Symbol | Value | Unit | |
| Power Supply Voltage | VCC | 20 | V | |
| Package Dissipation (Note 2) | PD | AZ386P | 1.25 | W |
| AZ386M | 0.73 | W | ||
| Input Voltage | VIN | -0.4 | V | |
| Operating Temperature Range | TOP | -40 to 85 | ||
| Junction Temperature | TJ | 150 | ||
| Storage Temperature Range | TSTG | -65 to 150 | ||
| Soldering Information | DIP-8 Soldering (10 sec.) |
260 | ||
| SOIC-8 (15 sec.) | 215 | |||
| Thermal Resistance | JA | DIP | 107 | /W |
| SOIC | 172 | |||
AZ386 Features
· Wide supply voltage range: 5V to 18V
· Low quiescent current drain: 4.5mA
· Voltage gains from 20 to 200dB
· Battery operation
· Minimum external parts
· Low power dissipation
· Low distortion
· Low quiescent current drain: 4.5mA
· Voltage gains from 20 to 200dB
· Battery operation
· Minimum external parts
· Low power dissipation
· Low distortion
AZ386 Typical Application
· AM - FM radio amplifier
· Cordless phone
· TV sound systems
· Portable tape player amplifier
· Intercoms
· Line drivers
· Ultrasonic drivers
· Small servo drivers
· Power converters
· Cordless phone
· TV sound systems
· Portable tape player amplifier
· Intercoms
· Line drivers
· Ultrasonic drivers
· Small servo drivers
· Power converters

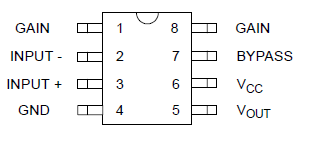

AZ386 Connection Diagram
AZ386
