Features: ` Operating voltage: ±2V ~ ±18V` Large DC voltage gain: 110dB typ.` Low input noise voltage: 0.7 VRMS typ.` Wide gain bandwidth product: 15 MHz typ.` Low distortion: 0.0005% typ.` Slew rate: 7V/s typ.` Package outline: DIP8, SOIC8Application· Audio AC-3 decoded system· Audio amplifierPin...

See larger image

SeekIC No. : 004293411 Detail

AZ4580: Features: ` Operating voltage: ±2V ~ ±18V` Large DC voltage gain: 110dB typ.` Low input noise voltage: 0.7 VRMS typ.` Wide gain bandwidth product: 15 MHz typ.` Low distortion: 0.0005% typ.` Slew rat...

AZ4580 Data Sheet

Get Latest Price

Part Number:: AZ4580
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AZ4558 evaluate
Features: ` Internal frequency compensation` Large DC voltage gain with 100 dB typical` High input...
AZ4558A evaluate
Features: · Operating voltage: ±2V ~ ±18V· Large DC voltage gain: 110 dB typ.· Low input noise vol...
AZ4558C evaluate
Features: · Internally Frequency Compensated· Large Signal Voltage Gain: 100dB Typical· Gain and P...

Product Details

Description

Features:

` Operating voltage: ±2V ~ ±18V
` Large DC voltage gain: 110dB typ.
` Low input noise voltage: 0.7 VRMS typ.
` Wide gain bandwidth product: 15 MHz typ.
` Low distortion: 0.0005% typ.
` Slew rate: 7V/s typ.
` Package outline: DIP8, SOIC8

Application

· Audio AC-3 decoded system
· Audio amplifier

Pinout

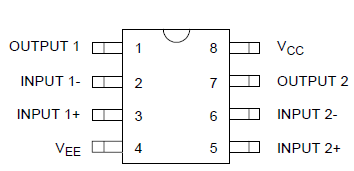

Connection Diagram
