AZ5954

Features: ` Wide Dynamic Range (3.9V(Typ.) When VCC = 12V, PVCC=5V and RL=8)` Level Shift Circuit On Chip` Thermal Shutdown Circuit On Chip` Internal Standby ModeApplication· CD-ROM Driver· DVD DriverPinoutSpecifications Parameter Symbol Value Unit Supply Voltage VCC, PVCC1/2 13.5 V ...

product image

AZ5954 Picture
See larger image
SeekIC No. : 004293416 Detail

AZ5954: Features: ` Wide Dynamic Range (3.9V(Typ.) When VCC = 12V, PVCC=5V and RL=8)` Level Shift Circuit On Chip` Thermal Shutdown Circuit On Chip` Internal Standby ModeApplication· CD-ROM Driver· DVD Driv...

AZ5954 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AZ5954
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Wide Dynamic Range (3.9V(Typ.) When VCC =
  12V, PVCC=5V and RL=8)
` Level Shift Circuit On Chip
` Thermal Shutdown Circuit On Chip
` Internal Standby Mode


Application

· CD-ROM Driver
· DVD Driver


Pinout

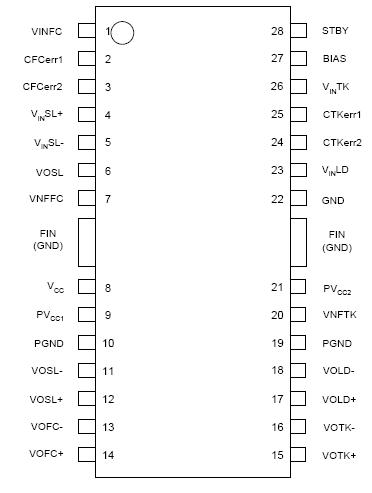

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply Voltage VCC, PVCC1/2 13.5 V
Power Dissipation PD 1.7 (Note 3) W
Storage Temperature Range TSTG -55 to 150
Note 2: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum
Ratings" for extended periods may affect device reliability.
Note 3: The power dissipation is reduced by 13.6mW for each increase in temperature of 1oC over 25o


Description

The AZ5954 is a four-channel BTL driver IC for driving the motors and actuators in products such as CDROM and DVD. Two of the channels use current feedback to minimize the current phase shift caused by the influence of load inductance. The IC is used in CDROM drivers and DVD drivers, etc.

The AZ5954 is available in HSOP-28 package.
