Features:

· Output Current up to 0.5A
· Fixed Output Voltages of 5V, 6V, 8V, 9V and 12V
· Output Voltage Tolerances of ± 5% over the Full Temperature Range
· Internal Short Circuit Current-Limiting
· Internal Thermal Overload Protection


Application

· Consumer Electronics
· Microprocessor Power Supply
· Mother Board I/O Power Supply


Pinout

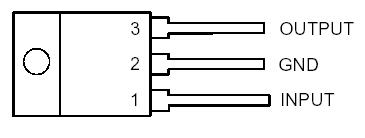

Connection Diagram


Specifications

Parameter Symbol Value Unit
Input Voltage VIN 20 V
Lead Temperature (Soldering, 10 sec.)   300
Power Dissipation PD Internally Limited
Storage Temperature Range TSTG -65 to 150
ESD (Machine Model) ESD 450 V

Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.




Description

The AZ78MXX series are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation.

This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output currents up to 0.5A.

The AZ78MXX series are available in two standard plastic packages: TO-220 and TO-252.
