AZV99

Features: • Green and RoHS Compliant / Lead (Pb) Free Packages Available• Similar Operation as AZ100LVEL16VT except with LVDS Outputs• Operating Range of 3.0V to 5.5V• Minimizes External Components• Selectable Enable Polarity and Threshold (CMOS/TTL or PECL)• Av...

product image

AZV99 Picture
See larger image
SeekIC No. : 004293528 Detail

AZV99: Features: • Green and RoHS Compliant / Lead (Pb) Free Packages Available• Similar Operation as AZ100LVEL16VT except with LVDS Outputs• Operating Range of 3.0V to 5.5V• Minimi...

AZV99 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AZV99
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Green and RoHS Compliant / Lead (Pb) Free Packages Available
• Similar Operation as AZ100LVEL16VT except with LVDS Outputs
• Operating Range of 3.0V to 5.5V
• Minimizes External Components
• Selectable Enable Polarity and Threshold (CMOS/TTL or PECL)
• Available in a 2x2 or 3x3mm MLP Package
• SParameter (.s2p) and IBIS Model Files Available on Arizona Microtek Website


Pinout

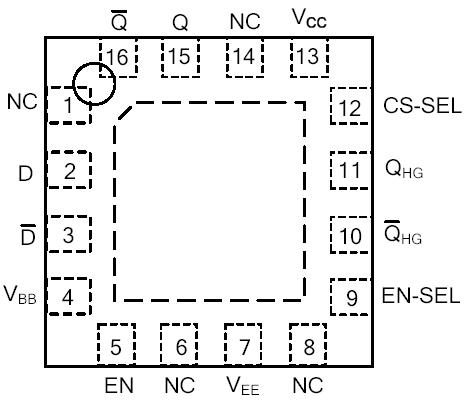

Connection Diagram


Specifications

Symbol Characteristic Rating Unit
VCC Power Supply 0 to +6.0 Vdc
VI Input Voltage 0 to +6.0 Vdc
VD/D D/D¯ Input Voltage ±0.75 with respect to VBB Vdc
IOUT Output Current - Continuous Q/Q
- Surge Q/Q
- Continuous QHG/Q¯HG
- Surge QHG/Q¯HG		 25
50
5
10		 mA
TA Operating Temperature Range -40 to +85 °C
TSTG Storage Temperature Range -65 to +150 °C



Description

The AZV99 is a specialized oscillator gain stage with LVDS output buffer including an enable. The enable input (EN) allows continuous oscillator operation by only controlling the QHG /Q¯HG outputs.

The AZV99 also provides a VBB and 470 internal bias resistors from D to VBB and D¯ to VBB. The VBB pin can support 1.5 mA sink/source current. Bypassing VBB to ground with a 0.01 F capacitor is recommended.
