General Description
Am29F010 General Description
The Am29F010 is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The Am29F010 is offered in 32-pin PLCC, TSOP, and PDIP packages. The byte wide data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed or erased in standard EPROM programmers. The standard device offers access times of 45, 55, 70,90, and 120 ns, allowing high-speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE) controls. The device requires only a single 5.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
Am29F010 Maximum Ratings
Storage Temperature
Plastic Packages . . . . . . . . . . . . . . .6°C to +125°C
Ambient Temperature
with Power Applied . . . . . . . . . . . .55°C to +125°C
Voltage with Respect to Ground
VCC (Note 1). . . . . . . . . . . . . . . . . . . .2.0 V to +7.0 V
A9 (Note 2). . . . . . . . . . . . . . . . . . . .2.0 V to +12.5 V
All other pins (Note 1) . . . . . . . . . . . . 2.0 V to +7.0 V
Output Short Circuit Current (Note 3) . . . . . . . .200 mA
Plastic Packages . . . . . . . . . . . . . . .6°C to +125°C
Ambient Temperature
with Power Applied . . . . . . . . . . . .55°C to +125°C
Voltage with Respect to Ground
VCC (Note 1). . . . . . . . . . . . . . . . . . . .2.0 V to +7.0 V
A9 (Note 2). . . . . . . . . . . . . . . . . . . .2.0 V to +12.5 V
All other pins (Note 1) . . . . . . . . . . . . 2.0 V to +7.0 V
Output Short Circuit Current (Note 3) . . . . . . . .200 mA
Am29F010 Features
Single power supply operation
- 5.0 V ± 10% for read, erase, and program
operations
- Simplifies system-level power requirements
High performance
- 45 ns maximum access time
Low power consumption
- 30 mA max active read current
- 50 mA max program/erase current
- <25 µA typical standby current
Flexible sector architecture
- Eight uniform sectors
- Any combination of sectors can be erased
- Supports full chip erase
Sector protection
- Hardware-based feature that disables/re-
enables program and erase operations in any
combination of sectors
- Sector protection/unprotection can be
implemented using standard PROM
programming equipment
Embedded Algorithms
- Embedded Erase algorithm automatically
pre-programs and erases the chip or any
combination of designated sector

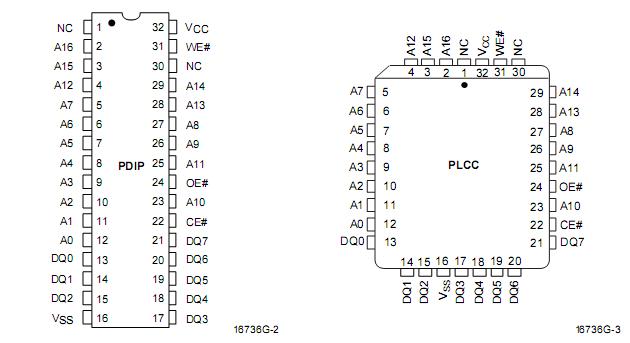

Am29F010 Connection Diagram
Am29F010-120DGC1
PDF/DataSheet Download
- Datasheet: Am29F010-120DGC1
- File Size: 57689 KB
- Manufacturer: AMD [Advanced Micro Devices]
- Click here to Download
