Am29F017B

* Optimized for memory card applications
-Backwards-compatible with the Am29F016C
* 5.0 V ± 10%, single power supply operation
-Minimizes system level power requirements
* Manufactured on 0.35µm process technology
* High performance
-Access times as fast as 70 ns
* Low power consumption
-25 mA typical active read current
-30 mA typical program/erase current
-1 µA typical standby current (standard access time to active mode)
* Flexible sector architecture
-32 uniform sectors of 64 Kbytes each
-Any combination of sectors can be erased.
-Supports full chip erase
-Group sector protection:
    A hardware method of locking sector groups to prevent any program
    or erase operations within that sector group Temporary Sector
    Group Unprotect allows code changes in previously locked sectors
* Embedded Algorithms
-Embedded Erase algorithm automatically
    preprograms and erases the entire chip or any
    combination of designated sectors
-Embedded Program algorithm automatically
    writes and verifies bytes at specified addresses
* Minimum 1,000,000 program/erase cycles per sector guaranteed
* Package options

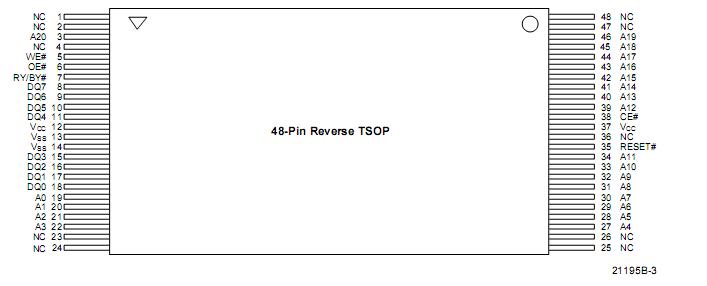

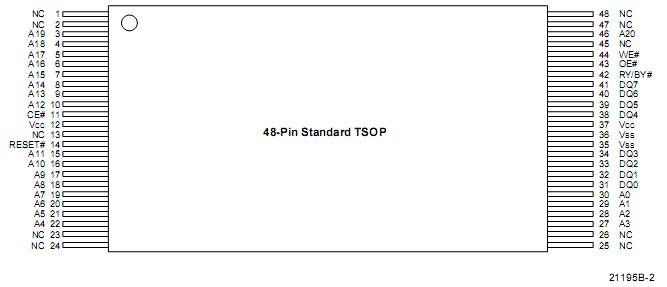

-48-pin TSOP
* Compatible with JEDEC standards
-Pinout and software compatible with single-power-supply Flash standard
-Superior inadvertent write protection
* Data# Polling and toggle bits
-Provides a software method of detecting program or erase cycle completion
* Ready/Busy# output (RY/BY#)
-Provides a hardware method for detecting program or erase cycle completion
* Erase Suspend/Erase Resume
-Suspends a sector erase operation to read data from, or program data to,
   a non-erasing sector, then resumes the erase operation
* Hardware reset pin (RESET#)
-Resets internal state machine to the read mode
