Five Points

Part Number: Am29LV004BB-70EC

Package Cooled: FLS

D/C: 0049+

Description: The Am29LV004B is an 4 Mbit, 3.0 volt-only Flash memory organized as 524,288 bytes. The device is offered in a 40 pin T...

Am29LV004BB-70EC General Description

The Am29LV004B is an 4 Mbit, 3.0 volt-only Flash memory organized as 524,288 bytes. The device is offered in a 40 pin TSOP package. The byte-wide (x8) data appears on DQ7DQ0. This device requires only a single, 3.0 volt VCC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the device.

This device is manufactured using AMD's 0.32 µm process technology, and offers all the features and benefits of the Am29LV004, which was manufactured using 0.5 µm process technology. In addition, the Am29LV004B features unlock bypass programming and in-system sector protection/unprotection.

Am29LV004BB-70EC Maximum Ratings

Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied. . . . . . . . . . . . . 65°C to +125°C
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . . . . . .0.5 V to +4.0 V
A9, OE#, and RESET# (Note 2) . . . .0.5 V to +12.5 V
All other pins (Note 1) . . . . . . . . 0.5 V to VCC+0.5 V
Output Short Circuit Current (Note 3) . . . . . . 200 mA

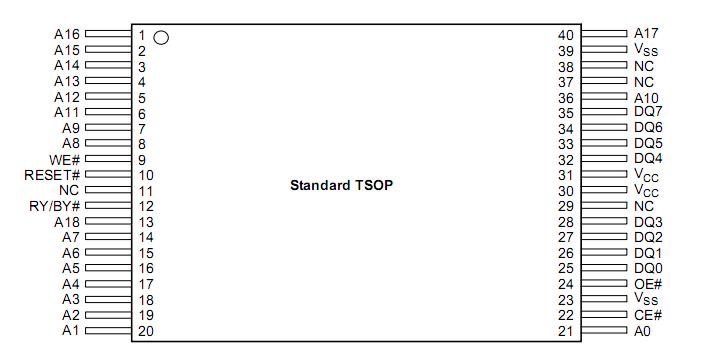

Am29LV004BB-70EC Connection Diagram

Am29LV004BB-70EC datasheet

Am29LV004BB-70EC
PDF/DataSheet Download

Datasheet: Am29LV004BB-70EC
File Size: 788053 KB
Manufacturer: AMD [Advanced Micro Devices]
Click here to Download
