Purchase Am29LV800D, In-stock Am29LV800D From SeekIC.
Part Number: Am29LV800D
Description: The Am29LV800D is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The ...
- Table of contents:
Am29LV800D
-
Suppliers
DataSheet
General Description
Am29LV800D General Description
The Am29LV800D is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. For more information, refer to publication number 21536. The word-wide data (x16) appears on DQ15DQ0; the byte-wide (x8) data appears on DQ7DQ0. This device requires only a single, 3.0 volt V CC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the device.
Am29LV800D Maximum Ratings
Plastic Packages . . . . . . . . . . . .......... . . . 65°C to +150°C
Ambient Temperature
with Power Applied . . . . . . . . . . . . ......... . 65°C to +85°C
VCC (Note 1). . . . . . . . . . . . . ................... . . 0.5 V to +4.0 V
A9, OE#, and RESET# (Note 2). . . . . . . . . . 0.5 V to +12.5 V
All other pins (Note 1). . . .................... . .0.5 V to VCC+0.5 V
Output Short Circuit Current (Note 3). . . . . ................ .200 mA
Ambient Temperature
with Power Applied . . . . . . . . . . . . ......... . 65°C to +85°C
VCC (Note 1). . . . . . . . . . . . . ................... . . 0.5 V to +4.0 V
A9, OE#, and RESET# (Note 2). . . . . . . . . . 0.5 V to +12.5 V
All other pins (Note 1). . . .................... . .0.5 V to VCC+0.5 V
Output Short Circuit Current (Note 3). . . . . ................ .200 mA

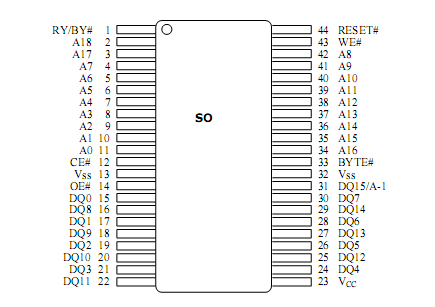

Am29LV800D Connection Diagram
AM29LV800DB-120
PDF/DataSheet Download
- Datasheet: AM29LV800DB-120
- File Size: 1668345 KB
- Manufacturer: AMD [Advanced Micro Devices]
- Click here to Download
