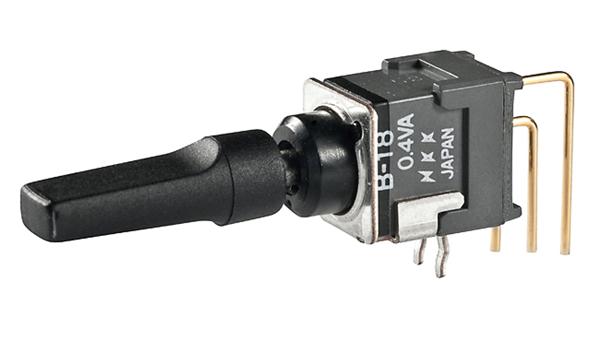

See larger image

SeekIC No. : 002663281 Detail

B18KV-BA: Toggle Switches (ON)-OFF-(ON) SPDT

B18KV-BA Data Sheet

US $ 3~3.88 / Piece | Get Latest Price

Part Number:: B18KV-BA
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$3.88
$3.53
$3.2
$3

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

B18KB-AG evaluate
US $4.25 - 4.25 / Piece

SW TOGGLE SPDT .4VA BLU BRKT ESD
B18KB-AG-RO evaluate
US $3.2 - 3.38 / Piece

Toggle Switches (ON)OFF(ON) .37 HIGH BLU STRT BRKT PC.4VA
B18KB-BA evaluate
US $4.25 - 4.25 / Piece

SW TOGGLE SPDT .4VA BK BRKT ESD

Product Details

Quick Details

Contact Form :	SPDT	Switch Function :	(ON) - OFF - (ON)
Current Rating :	0.1 A	Voltage Rating AC :	28 V
Voltage Rating DC :	28 V	Power Rating :	0.4 Volt-Amp
Termination Style :	Vertical PC with Bracket	Mounting Style :	Through Hole
Terminal Seal :	Epoxy	Contact Plating :	Gold
Illumination :	Not Illuminated

Description

Contact Form : SPDT
Switch Function : (ON) - OFF - (ON)
Voltage Rating DC : 28 V
Mounting Style : Through Hole
Terminal Seal : Epoxy
Illumination : Not Illuminated
Contact Plating : Gold
Power Rating : 0.4 Volt-Amp
Current Rating : 0.1 A
Voltage Rating AC : 28 V
Termination Style : Vertical PC with Bracket

Parameters:

Technical/Catalog Information	B18KV-BA
Vendor	NKK Switches of America Inc
Category	Switches
Circuit	SPDT
Switch Function	Mom-Off-Mom
Mounting Type	Through Hole
Actuator Length	14.20mm
Actuator Type	Snap On Paddle
Bushing Thread	Unthreaded
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination	Non-Illuminated
Termination Style	PC Pin
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	B18KV BA B18KVBA
