B22AP

Toggle Switches DPDT ON-NONE-ON .394 BAT STRAIGHT PC

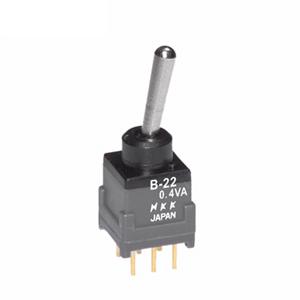

product image

B22AP Picture
See larger image
SeekIC No. : 002662937 Detail

B22AP: Toggle Switches DPDT ON-NONE-ON .394 BAT STRAIGHT PC

B22AP Data Sheet

floor Price/Ceiling Price

US $ 2.07~2.73 / Piece | Get Latest Price
Part Number:
B22AP
Mfg:
NKK Switches
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~50
  • 50~100
  • Unit Price
  • $2.73
  • $2.27
  • $2.19
  • $2.07
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Contact Form : DPDT Switch Function : ON - NONE - ON
Current Rating : 0.1 A Voltage Rating AC : 28 V
Voltage Rating DC : 28 V Power Rating : 0.4 Volt-Amp
Termination Style : Solder Mounting Style : Through Hole
Terminal Seal : Epoxy Contact Plating : Nickel
Illumination : Not Illuminated

Description

Voltage Rating DC : 28 V
Mounting Style : Through Hole
Terminal Seal : Epoxy
Illumination : Not Illuminated
Switch Function : ON - NONE - ON
Contact Form : DPDT
Power Rating : 0.4 Volt-Amp
Termination Style : Solder
Current Rating : 0.1 A
Voltage Rating AC : 28 V
Contact Plating : Nickel


Parameters:

Technical/Catalog InformationB22AP
VendorNKK Switches of America Inc
CategorySwitches
CircuitDPDT
Switch FunctionOn-On
Mounting TypeThrough Hole
Actuator Length10.00mm
Actuator TypeStandard Round
Bushing ThreadUnthreaded
Contact Rating @ Voltage0.4VA @ 28VAC/DC
IlluminationNon-Illuminated
Termination StylePC Pin
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names B22AP
B22AP
360 1015 ND
3601015ND
360-1015
