B3F-3102, US $ .21-.28 , Omron Electronics, B3F-3102 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002650609 Detail

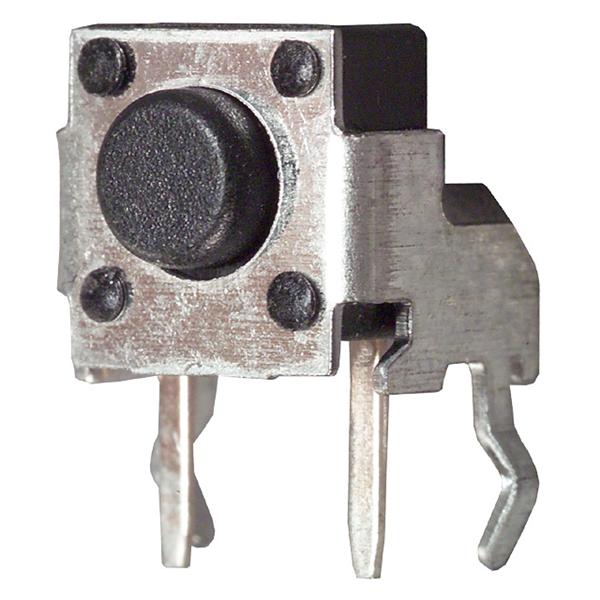

B3F-3102: Tactile & Jog Switches Vert. Flat 3.15mm 100-150g w/o Grd Tm

B3F-3102 Data Sheet

US $ .21~.28 / Piece | Get Latest Price

Part Number:: B3F-3102
Mfg:: Omron Electronics
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$.28
$.25
$.23
$.21

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

B3F-0802 evaluate
SWITCH TACTILE SPST-NO 0.05A 24V
B3F-1000 evaluate
US $.13 - .14 / Piece

Tactile & Jog Switches 6X6 Flat 4.3mm Btn Force 100g w/o Grd
B3F-1000S evaluate
US $.17 - .19 / Piece

Tactile & Jog Switches 6x6 Flat 4.3mm Btn Force 100g w/o Grd

Product Details

Quick Details

Operating Force :	1.47 N	Actuator :	Round
Current Rating :	50 mA	Voltage Rating DC :	24 V
Ground Terminal :	Yes	Contact Form :	1 Form A (SPST-NO)
Mounting Direction :	Vertical	Illumination :	Not Illuminated

Description

Voltage Rating AC :
Power Rating :
Switch Function :
Mounting Style :
Stem Height :
Color :
Illumination Color :
Packaging :
Actuator : Round
Mounting Direction : Vertical
Illumination : Not Illuminated
Current Rating : 50 mA
Contact Form : 1 Form A (SPST-NO)
Ground Terminal : Yes
Operating Force : 1.47 N
Voltage Rating DC : 24 V

Parameters:

Technical/Catalog Information	B3F-3102
Vendor	Omron Electronics Inc-ECB Div
Category	Switches
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05A @ 24VDC
Mounting Type	Through Hole
Operating Force	150gf
Orientation	Right Angle
Outline	7.40mm x 7.30mm
Switch Function	Off-Mom
Illumination	Non-Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	B3F 3102 B3F3102 SW1050 ND SW1050ND SW1050
