Product Details

Description



Features:

1) High output current. (IOUT=500mA Max.)
2) High output sustain voltage. (VOUT=50V Max.)
3) Seven Darlington transistors built in.
4) Built-in surge-absorbing clamp diode.
(Note : Refer to the "Reference items when using in application." )


Application

Drivers for LEDs, lamps, relays and solenoids
Interface with other elements


Pinout

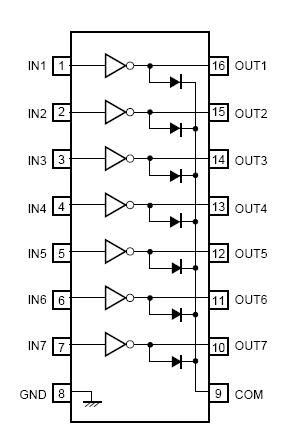

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Power supply voltage VCE 60 V
Input voltage other than BA12001 VIN −0.5∼+30 V
Input current BA12001B IIN 25 mA / unit
Output current IOUT 500 mA / unit
Ground pin current IGND 2.3∗1 A
Power dissipation DIP package Pd 1250∗2 mW
SOP package 625∗3
Diode reverse voltage VR 60 V
Diode forward current IF 500 mA
Operating temperature Topr −25∼+75 °C
Storage temperature Tstg −55∼+1500 °C
∗1 Pulse width 20ms, duty cycle 10%, same current for all 7 circuits
∗2 Reduced by 10mW for each increase in Ta of 1°C over 25°C .
∗3 Reduced by 50mW for each increase in Ta of 1°C over 25°C .


Description

The BA12001B, BA12003B, BA12003BF, and BA12004B are high voltage, high current, high sustain voltage transistor arrays consisting of seven circuits of Darlington transistors.

Because it incorporates built-in surge-absorbing diodes and base current-control resistors needed when using inductive loads such as relay coils, attachments can be kept to a minimum.

With an output sustain voltage as high as 60V and an output current (sink current) of 500mA, this product is ideal for use with various drivers and as an interface with other elements.
