Purchase BA3308, In-stock BA3308 From SeekIC.
MFG:ROHM Package Cooled:ZIP
Part Number: BA3308
MFG: ROHM
Package Cooled: ZIP
Description: The BA3308, BA3308F and BA3308FV are dual preamplifier ICs with built-in ALC circuits, and have been d...
- Table of contents:
BA3308
-
Suppliers
DataSheet
General Description
BA3308 General Description
The BA3308, BA3308F and BA3308FV are dual preamplifier ICs with built-in ALC circuits, and have been designed for use in stereo radio-cassette recorders and tape recorders. They come in compact 9-pin SIP (BA3308), 14-pin MF (BA3308F) and 14-pin SSOP (BS3308FV) packages, and have two record/ playback preamplifiers, and an ALC circuit. The preamplifiers have high gain and low distortion, and can be directly coupled to the tape head without coupling capacitors. This prevents tape head magnetization and "pop" noise generation.
A built-in rectifier means that an ALC circuit with good channel balance and large dynamic range can be constructed with addition of just an external time constant circuit.
The ICs also include power-on mute circuits that suppress "pop" noise generation.

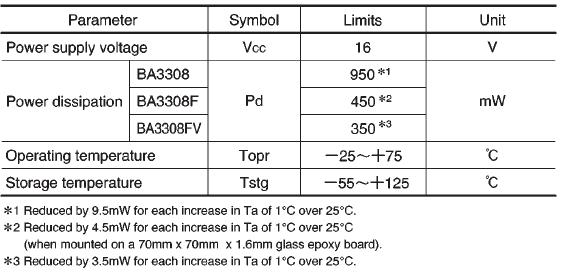

BA3308 Features
1) Built-in ALC rectifier diode.
2) Wide operating power supply voltage range (VCC = 4.5V to 14V).
3) Low current dissipation (IQ = 3.5mV).
4) High gain (GVO = 80dB).
5) Low distortion (THD = 0.1%).
6) Low noise (VNIN = 1mVrms)
7) Input coupling capacitors and not necessary.
8) Good ALC channel balance.
9) Power-on mute circuit.
10) ALC dynamic range can be varied by the addition of an external input resistor.
2) Wide operating power supply voltage range (VCC = 4.5V to 14V).
3) Low current dissipation (IQ = 3.5mV).
4) High gain (GVO = 80dB).
5) Low distortion (THD = 0.1%).
6) Low noise (VNIN = 1mVrms)
7) Input coupling capacitors and not necessary.
8) Good ALC channel balance.
9) Power-on mute circuit.
10) ALC dynamic range can be varied by the addition of an external input resistor.
BA3308 Typical Application
Stereo radio cassette recorders, cassette decks and
home stereo systems and music centers
home stereo systems and music centers
