IC PREAMP AUDIO STER AB 24SDIP
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $.2 - .21 / Piece
Operational Amplifiers - Op Amps 4-36V 2 CHANNELS 70nA 0.7mA
US $.25 - .49 / Piece
Operational Amplifiers - Op Amps 4-36V 2 CHANNELS 70nA 0.7mA
Series: | - | Manufacturer: | Rohm Semiconductor |
Type: | Class AB | Output Type: | 2-Channel (Stereo) |
Max Output Power x Channels @ Load: | - | Voltage - Supply: | 7 V ~ 18 V |
Features: | - | Mounting Type: | Through Hole |
Propagation Delay Time : | 9 ns at 2.7 V, 8 ns at 3 V to 3.6 V | Supplier Device Package: | 24-SDIP |
Package / Case: | 24-SDIP (0.300", 7.62mm) |

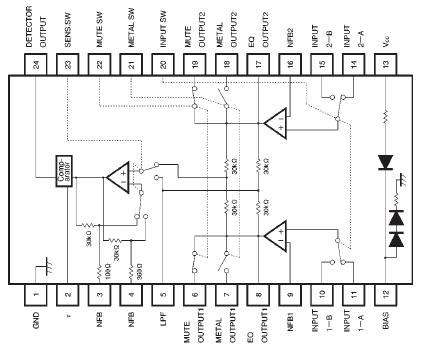

The BA3430S, BA3430F, and BA3430FS are stereo pre-amplifiers with mute detection circuits which have been designed for use in car stereos. The analog circuitry including the pre-amplifier and mute detection and the digital circuitry such as control logic circuits have been combined together on a single chip. This has made it possible to reduce the interface with the microcontroller to five parallel inputs and outputs, and enables a very compact circuit configuration around the tape head.
The BA3430S, BA3430F, or BA3430FS makes it possible to easily incorporate an ultra-compact, high-precision pre-amplifier board into the mechanical components of a car stereo.
Technical/Catalog Information | BA3430S |
Vendor | Rohm Semiconductor |
Category | Integrated Circuits (ICs) |
Package / Case | 24-SDIP (300 mil) |
Type | Class AB |
Output Type | 2-Channel (Stereo) |
Voltage - Supply | 7 V ~ 18 V |
Packaging | Tube |
Features | - |
Max Output Power x Channels @ Load | - |
Drawing Number | * |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | BA3430S BA3430S |
