BA3708F

Features: 1) Low supply voltage (can be operated at 1.8V; recommended operating voltage is 2.0 to 5.0V).2) Uses the song detection method to minimize incorrect detection caused by noise between songs.3) The pulse delay time TD, pulse width TW, and song detect time TC can be set using external CR t...

product image

BA3708F Picture
See larger image
SeekIC No. : 004295503 Detail

BA3708F: Features: 1) Low supply voltage (can be operated at 1.8V; recommended operating voltage is 2.0 to 5.0V).2) Uses the song detection method to minimize incorrect detection caused by noise between song...

BA3708F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA3708F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Low supply voltage (can be operated at 1.8V; recommended
    operating voltage is 2.0 to 5.0V).
2) Uses the song detection method to minimize incorrect
    detection caused by noise between songs.
3) The pulse delay time TD, pulse width TW, and song detect
    time TC can be set using external CR time constants.
4) Includes a mute circuit which makes it possible to stop song selection.
5) Built-in output transistor enables direct drive of the plunger. (IO Max. = 100mA)


Application

3V tape players

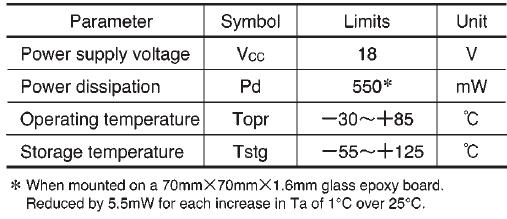

Specifications

Connection Diagram


Description

The BA3708F is a mute detector IC for 3V tape players. When the signal is higher than the input decision level VIN and longer than the song detect time, a pulse of width TW is output after the pulse delay time TD which begins when the input signal ends. The output is an open collector which enables direct drive of the plunger. A mute function is included which makes it possible to stop detection.
