BA5152F

Features: High output. POUT = 15mW (RL = 16W). Small pop noise. Mute circuit terminal provided. Terminals provided for radiation countermeasures. Good ripple rejection ratio. Few external components required. Good low-voltage characteristics. Built-in power switch circuit.Application 1.5V headp...

product image

BA5152F Picture
See larger image
SeekIC No. : 004295573 Detail

BA5152F: Features: High output. POUT = 15mW (RL = 16W). Small pop noise. Mute circuit terminal provided. Terminals provided for radiation countermeasures. Good ripple rejection ratio. Few external compone...

BA5152F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA5152F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High output. POUT = 15mW (RL = 16W).
  Small "pop" noise.
  Mute circuit terminal provided.
  Terminals provided for radiation countermeasures.
  Good ripple rejection ratio.
  Few external components required.
  Good low-voltage characteristics.
  Built-in power switch circuit.


Application

1.5V headphone Hi-Fi stereos


Pinout

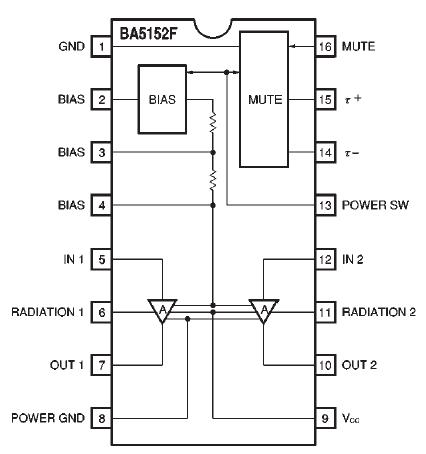

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Power supply voltage Vcc

 4.5 V
Power dissipation Pd 500 * mW
Operating temperature Topr -25~+75
Storage temperature Tstg -55~+125



Description

The BA5152F is a dual-channel power amplifier designed for 1.5V headphone stereos. The circuit consists of a power supply circuit, mute circuit, bias circuit, and two amplifier circuits. To simplify assembly, the gain is fixed, so external negative- feedback components are not required.
