BA5416

Series: -
Type: Class AB
Output Type: 2-Channel (Stereo)
Mounting Type: Through Hole
Packaging: Tube
Manufacturer: Rohm Semiconductor
Package / Case: 12-SIP + Tab
Features: Depop, Mute, Standby, Thermal Protection
Max Output Power x Channels @ Load: 5.4W x 2 @ 3 Ohm
Voltage - Supply: 5 V ~ 15 V
Supplier Device Package: 12-HSIP-B


Features:

1) High output.
  POUT = 5.4W (VCC = 12V, RL = 3W and THD = 10%)
  POUT = 2.5W (VCC = 9V, RL = 4W and THD = 10%)
2) Excellent audio quality.
  THD = 0.1% (f = 1kHz, PO = 0.5W)
  VNO = 0.3mVrms (Rg = 10kW)
  RR = 60dB (fRR = 100Hz)
3) Wide operating power suppy voltage range.
  VCC = 5.0V to 18.0V (BA5416: 5.0V to 15.0V)
4) Switching noise ("pop" noise) generated when the
  power is switched on and off is small.
5) Ripple mixing when motor starts has been prevented.
6) Built-in thermal shutout.
7) Built-in standby switch. Output is not influenced by
  the standby pin voltage.
8) "On" mute time does not depend on VCC.
9) Soft clipping.
10) Heatsink not required (for BA5415A, with VCC = 9V and RL
4W).


Application

Radio cassette players.

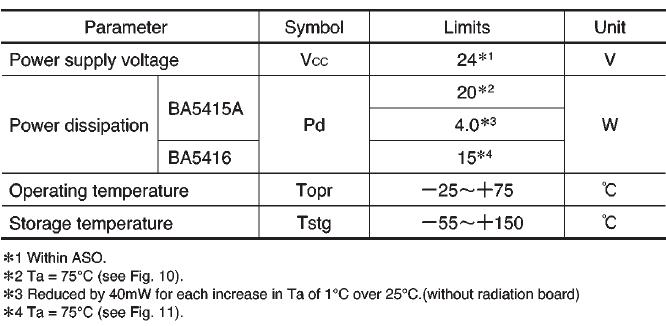

Specifications




Description

The BA5415A and BA5416 are dual power amplifier ICs that operate off a 9V to 15V supply. When driving a 4W load off a 9V supply, the BA5415A does not require a heatsink. The BA5416 uses a lost-cost package. The basic characteristics (total harmonic distortion etc.) of the amplifiers are excellent, and both ICs include a standby switch function.

Parameters:

Technical/Catalog Information	BA5416
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Package / Case	12-SIP + Tab
Type	Class AB
Output Type	2-Channel (Stereo)
Voltage - Supply	5 V ~ 15 V
Packaging	Tube
Features	Depop, Mute, Standby, Thermal Protection
Max Output Power x Channels @ Load	5.4W x 2 @ 3 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA5416 BA5416
