Product Details

Quick Details

Mounting Style :	SMD/SMT	Package / Case :	HSIP-10
Packaging :	Bulk

Description

Product :
Type :
Operating Supply Voltage :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Bulk
Package / Case : HSIP-10

Features:

Large output current. (I_O=2.2A Max.)
Built-in thermal shutdown circuit.
Built-in output voltage setting pins.
Small standby supply current.

Application

VCRs and cassette tape recorders

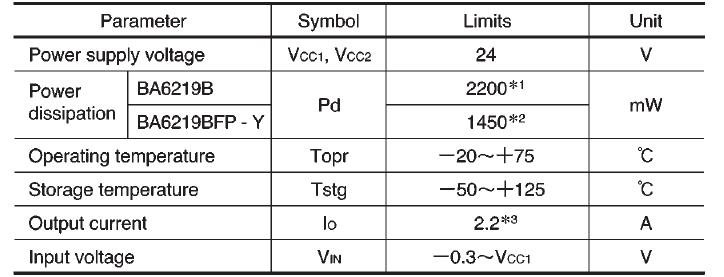

Specifications

Connection Diagram

Description

The BA6219B and BA6219BFP-Y are reversible-motor drivers suitable for brush motors. Two logic inputs allow four output modes: forward, reverse, idling, and braking. The motor revolving speed can be set arbitrarily by controlling the voltage applied to the motor.

Parameters:

Technical/Catalog Information	BA6219B
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Applications	DC Motor Driver
Number of Outputs	1
Voltage - Supply	8 V ~ 18 V
Voltage - Load	-
Current - Output	1.7A
Operating Temperature	-20°C ~ 75°C
Package / Case	10-SIP + Tab
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA6219B BA6219B
