Product Details

Description

Features:

The pin layout is compatible with the SN7417.
Incorporates 6 circuits

Application

Drivers such as lamps and relays
TTL input buffers

Pinout

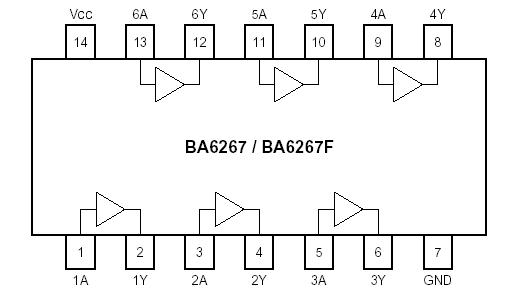

Connection Diagram

Specifications

Parameter		Symbol	Limits	Unit
Applied voltage		V_CC	7.0	V
Power dissipation	BA6267	P_d	600^*1	mW
Power dissipation	BA6267F	P_d	550^*2	mW
Operating temperature		T_opr	0 ~70	°C
Storage temperature		T_stg	55 ~+ 125	°C
Input voltage		V_I	0.3~ + 5.5	V
Output terminal voltage		V_o	18	V

Description

The BA6267 and BA6267F can be connected with a high-voltage circuit such as the MOS and can be used to drive high-current circuits such as lamps and relays. It can also be used as a buffer to drive TTL input.
