BA6950FS

Series: -
Number of Outputs: 1
Mounting Type: Surface Mount
Current - Output: 400mA
Evaluation Tools: -
Packaging: Tube
Manufacturer: Rohm Semiconductor
Applications: DC Motor Driver
Package / Case: 16-SSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-SSOPA
Operating Temperature: -20°C ~ 75°C
Voltage - Load: 3 V ~ 16 V
Voltage - Supply: 3 V ~ 6 V


Features:

1) Two logic inputs allow four output modes: forward, reverse, stop (standby), and brake.
2) Motor speed variable with voltage control signals.
3) Built-in current feedback amplifier allows constant motor speed.
4) Control gain can be set arbitrarily by using external resistors.
5) Built-in thermal shutdown circuit.

Application

VCRs, audio equipment


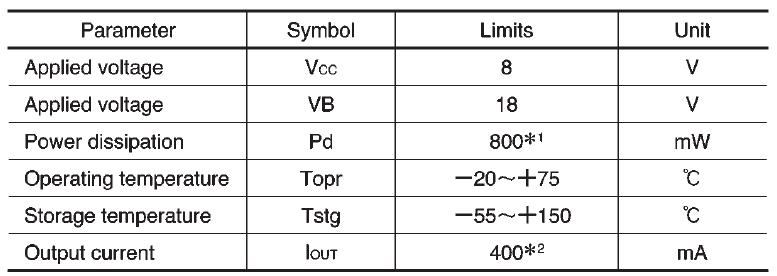

Specifications




Parameters:

Technical/Catalog Information	BA6950FS
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Applications	DC Motor Driver
Number of Outputs	1
Voltage - Supply	3 V ~ 6 V
Voltage - Load	3 V ~ 16 V
Current - Output	400mA
Operating Temperature	-20°C ~ 75°C
Package / Case	16-SSOPA
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA6950FS BA6950FS
