Part Number:: BA6970FS
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BA6901F evaluate
Features: 1) Lock detection, automatic restart circuit.2) Hall signal output.3) Alarm signal outpu...
BA6906F-E2 evaluate
US $.42 - .42 / Piece

Motor / Motion / Ignition Controllers & Drivers 1-PHASE MOTOR DRIVER 8-PIN
BA6906F-FE2 evaluate
Motor / Motion / Ignition Controllers & Drivers DC FAN IC 12V

Product Details

Description

Features:

Linear drive system provides low switching noise.
Output current can be controlled by either current or voltage input.
Two amplifiers and two hysteresis amplifiers.
Constant supply voltage pin for hall devices.
High ratio of output current and control current. (4000 typically)
Available in a compact surface-mount package.

Application

VCR cylinder motors

Pinout

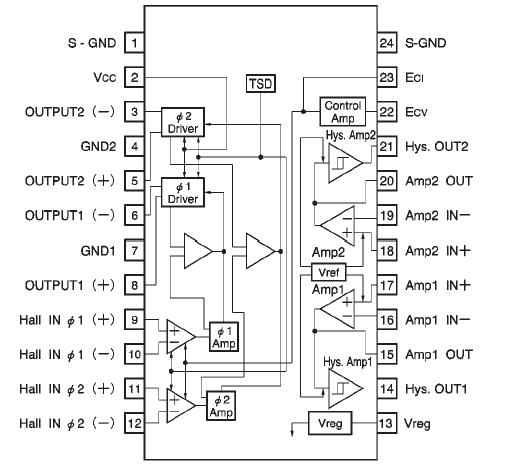

Connection Diagram

Specifications

Parameter	Symbol	Limits	Unit
Applid voltage	V_cc	24	V
Power dissipation	P_d	1000^*1	mW
Operating temperature	T_opr	-25~+75
Storage temperature	T_stg	-55~+150
Output current	I_OMax	1200^*2	mA
Input current	I_ECIMax	5	mA

Description

The BA6970FS is a direct-drive motor driver suitable for 2-phase, full-wave linear motors. The IC consists of a Hall amplifier control circuit, driver circuits, FG / PG signal amplifiers, and hysteresis amplifiers.
