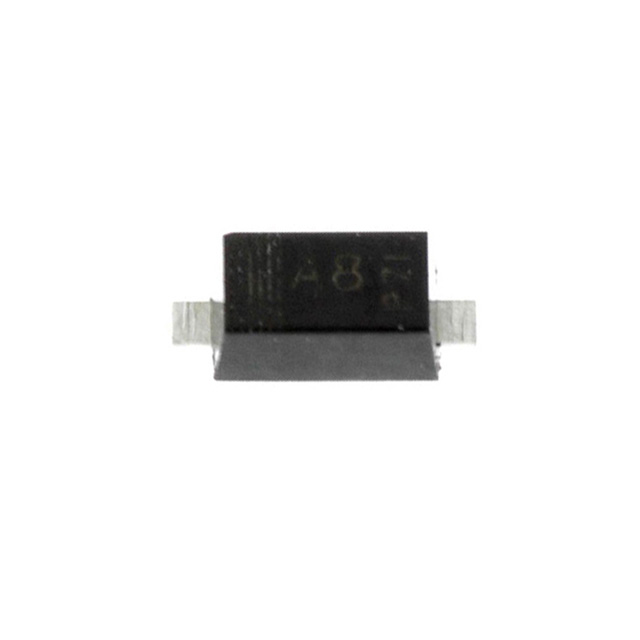

BAS40L Product Image

BAS Series Datasheet download

Five Points

Part Number: BAS40L



MFG: PHILIPS/NXP

Package Cooled: 07+

D/C: 10000

Description: Planar Schottky barrier diode with an integrated guard ring for stress protection. Encapsulated in a SOD882 leadless ul...


Urgent Purchase

BAS40L General Description


Planar Schottky barrier diode with an integrated guard ring for stress protection. Encapsulated in a SOD882 leadless ultra small plastic package.

BAS40L Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Per diode
VR continuous reverse voltage   - 40 V
IF continuous forward current   - 120 mA
IFRM repetitive peak forward current tp 1s; 0.5 - 120 mA
IFSM non-repetitive peak forward current tp < 10 ms - 200 mA
Tstg storage temperature   -65 +150 °C
Tj junction temperature   - 150 °C

BAS40L Features

· Low diode capacitance
· Low forward voltage
· Guard ring protected
· High breakdown voltage
· Leadless ultra small plastic package (1 mm × 0.6 mm × 0.5 mm)
· Boardspace 1.17 mm2 (approx. 10% of SOT23)
· Power dissipation comparable to SOT23.

BAS40L Typical Application

· Ultra high-speed switching
· Voltage clamping
· Protection circuits
· Mobile communication, digital (still) cameras, PDAs and PCMCIA cards.
