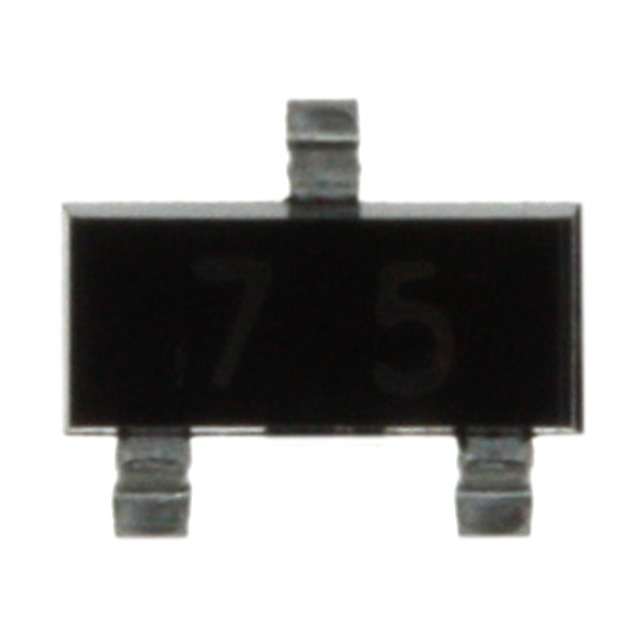

BAS70-05W Product Image

BAS Series Datasheet download

Five Points

Part Number: BAS70-05W



MFG: PHILIPS

Package Cooled: SOT-323

D/C: 07+

Description: Schottky barrier diodes encapsulated either in SOT-323 or SOD-323 small SMD packages.Single an...


Urgent Purchase

BAS70-05W General Description


Schottky barrier diodes encapsulated either in SOT-323 or SOD-323 small SMD packages.

Single and double diodes with different pining are available.

BAS70-05W Maximum Ratings

Symbol
Parameter
Value
Unit
IRRM
 RMS on-state current (full sine wave)
70
A
IF
 Continuous forward current
70
mA
IFSM
 Surge non repetitive forward current
tp = 10 ms
1
A
Ptot
 Power dissipation (note 1)
Tamb = 25		 SOD-323
230
mW
SOT-323
Tstg
 Maximum storage temperature range
- 65 to +150
Tj
 Maximum operating junction temperature *
150
TL
 Maximum temperature for soldering during 10s
260
Note 1: for double diodes, Ptot is the total dissipation of both diodes.

BAS70-05W Features

· VERY SMALL CONDUCTION LOSSES
· NEGLIGIBLE SWITCHING LOSSES
· LOW FORWARD VOLTAGE DROP
· SURFACE MOUNT DEVICE

BAS70-05W datasheet

BAS70-05W
PDF/DataSheet Download

  • Datasheet: BAS70-05W
  • File Size: 566661 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
