BAV21_T50A, US $ .04-.12 , Fairchild Semiconductor, BAV21_T50A DataSheet download, circuit diagram from SeekIC.com

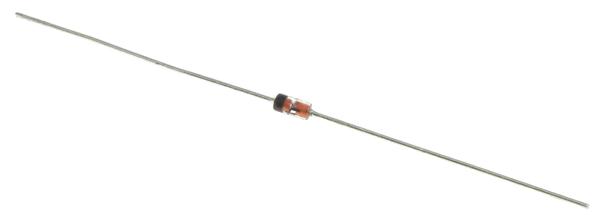

See larger image

SeekIC No. : 00136301 Detail

BAV21_T50A: Diodes (General Purpose, Power, Switching) DO-35 250V 200mA

BAV21_T50A Data Sheet

US $ .04~.12 / Piece | Get Latest Price

Part Number:: BAV21_T50A
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.12
$.1
$.07
$.04

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BAV20 evaluate
US $.01 - .01 / Piece

Diodes (General Purpose, Power, Switching) 1500W 20V 5% UNI TRANSZORB-TVS
BAV20 T/R evaluate
Diodes (General Purpose, Power, Switching) DIODE SW TAPE AXIAL
BAV20,113 evaluate
US $.01 - .03 / Piece

Diodes (General Purpose, Power, Switching) DIODE SW TAPE AXIAL

Product Details

Quick Details

Product :	Switching Diodes	Peak Reverse Voltage :	250 V
Forward Continuous Current :	0.2 A	Max Surge Current :	4 A
Configuration :	Single	Recovery Time :	50 ns
Forward Voltage Drop :	1.25 V	Maximum Power Dissipation :	0.5 W
Package / Case :	DO-35	Packaging :	Ammo

Description

Maximum Reverse Leakage Current :
Operating Temperature Range :
Product : Switching Diodes
Max Surge Current : 4 A
Recovery Time : 50 ns
Configuration : Single
Peak Reverse Voltage : 250 V
Forward Continuous Current : 0.2 A
Forward Voltage Drop : 1.25 V
Maximum Power Dissipation : 0.5 W
Package / Case : DO-35
Packaging : Ammo

Parameters:

Technical/Catalog Information	BAV21_T50A
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	250V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 200V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Through Hole, Axial
Package / Case	DO-35, Axial
Packaging	Tape & Box (TB)
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BAV21_T50A BAV21_T50A
