Purchase BC140, In-stock BC140 From SeekIC.
MFG:NJS D/C:07+
Part Number: BC140
MFG: NJS
D/C: 07+
Description: NPN medium power transistor in a TO-39 metal package.PNP complements: BC160 and BC161.
- Table of contents:
BC140
-
Suppliers
DataSheet
General Description
BC140 General Description
NPN medium power transistor in a TO-39 metal package.
PNP complements: BC160 and BC161.
BC140 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS |
MIN. |
MAX. |
UNIT |
| VCBO | collector-base voltage | open emitter | |||
| BC140 |
- |
80 |
V | ||
| BC141 |
- |
100 |
V | ||
| VCEO | collector-emitter voltage | open base | |||
| BC140 |
- |
40 |
V | ||
| BC141 |
- |
60 |
V | ||
| VEBO | emitter-base voltage | open collector |
- |
7 |
V |
| IC | collector current (DC) |
- |
1 |
A | |
| ICM | peak collector current |
- |
1.5 |
A | |
| IBM | peak base current |
- |
200 |
mA | |
| Ptot | total power dissipation | Tcase 45 °C |
- |
3.7 |
W |
| Tstg | storage temperature |
-65 |
+150 |
°C | |
| Tj | junction temperature |
- |
175 |
°C | |
| Tamb | operating ambient temperature |
-65 |
+150 |
°C |
BC140 Features
· High current (max. 1 A)
· Low voltage (max. 60 V).
· Low voltage (max. 60 V).
BC140 Typical Application
· General purpose switching and amplification.
BC140
PDF/DataSheet Download
- Datasheet: BC140
- File Size: 51713 KB
- Manufacturer: CENTRAL [Central Semiconductor Corp]
- Click here to Download
- ·BC107
- SEME-LAB [Seme LAB]
- GENERAL PURPOSE SMALL SIGNAL NPN BIPOLAR TRANSISTOR
- 71680 KB
- ·BC107A
- SIEMENS [Siemens Semiconductor Group]
- npn sisicon transistor
- 269411 KB
- ·BC107B
- SIEMENS [Siemens Semiconductor Group]
- npn sisicon transistor
- 269411 KB
- ·BC108
- SEME-LAB [Seme LAB]
- GENERAL PURPOSE SMALL SIGNAL NPN BIPOLAR TRANSISTOR
- 71680 KB
- ·BC108A
- SIEMENS [Siemens Semiconductor Group]
- npn sisicon transistor
- 269411 KB
- ·BC108B
- SIEMENS [Siemens Semiconductor Group]
- npn sisicon transistor
- 269411 KB
- ·BC108C
- SIEMENS [Siemens Semiconductor Group]
- npn sisicon transistor
- 269411 KB
- ·BC109
- ETC [ETC]
- TRANZYSTORY
- 71680 KB
BC140 Relative Products

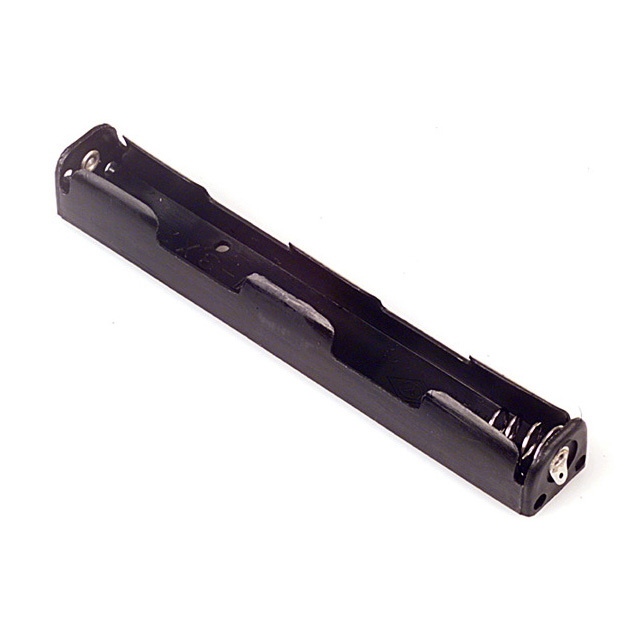

BC12AAL
