BC847

Transistor Polarity :
Collector- Emitter Voltage VCEO Max :
Emitter- Base Voltage VEBO :
Maximum DC Collector Current :
DC Collector/Base Gain hfe Min :
Configuration :
Maximum Operating Frequency :
Maximum Operating Temperature :
Mounting Style :

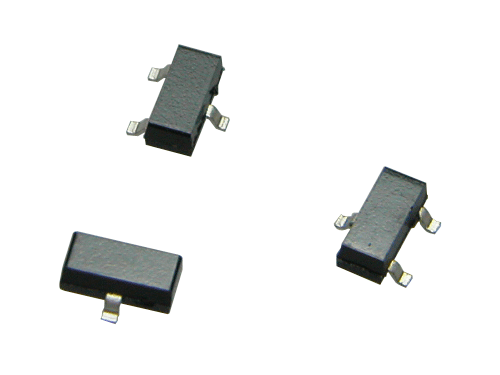

Package / Case :
Packaging : Reel


Pinout






Specifications

SOT23	SYMBOL	BC846	BC847	BC848	BC849	BC850	UNIT
Collector-Base Voltage	VCBO	80	50	30	30	50	V
Collector-Emitter Voltage	VCES	80	40	30	30	40	V
Collector-Emitter Voltage	VCEO	65	45	30	30	45	V
Emitter-Base Voltage	VEBO	6		5			V
Continuous Collector Current	IC	100					mA
Peak Collector Current	ICM	200					mA
Peak Base Current	IBM	200					mA
Peak Emitter Current	IEM	200					mA
Power Dissipation at Tamb =25°C	Ptot	330					mW
Operating and Storage Temperature Range	Tj:Tstg	-55 to +150					°C

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
BC847AMTF	Full Production	RoHS Compliant	$0.0194	SOT-23	3	TAPE REEL	TBD	Line 1: 8BA
BC847BMTF	Full Production	RoHS Compliant	$0.0194	SOT-23	3	TAPE REEL	TBD	Line 1: 8BB
BC847CMTF	Full Production	RoHS Compliant	$0.0194	SOT-23	3	TAPE REEL	TBD	Line 1: 8BC

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product BC847 is available. Click here for more information .

Description

Bipolar transistors BC847, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)
