Product Details

Description

Features:

• Low current (max. 100 mA)
• Low voltage (max. 65 V).

Application

• General purpose switching and amplification especially in portable equipment.

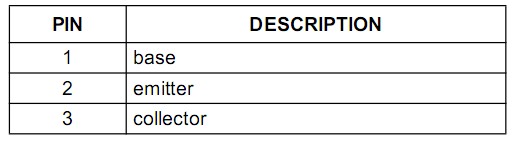

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CBO	collector-base voltage BC856AT; BC856BT BC857AT; BC857BT; BC857CT	open emitter	− −	−80 −50	V V
V_CEO	collector-emitter voltage BC856AT; BC856BT BC857AT; BC857BT; BC857CT	open base	− −	−65 −45	V V
V_EBO	emitter-base voltage	open collector	−	−5	V
I_C	collector current (DC)		−	−100	mA
I_CM	peak collector current		−	−200	mA
I_BM	peak base current		−	−100	mA
P_tot	total power dissipation	T_amb 25 °C; note 1	−	150	mW
T_stg	storage temperature		−65	+150	°C
T_j	junction temperature		−	150	°C
T_amb	operating ambient temperature		−65	+150	°C

Part Number	BC857AT
Product Type	PNP
V_CEO (V)	-45
I_C(A)	-0.1
I_CM (A)	-
P_D (W)	0.15
h_FE Min	125
h_FE Max	250
@I _C (A)	-0.002
V_CE(SAT) Max (mV)	-300
@ I_C (A)	-0.01
@ I_B (mA)	-0.5
f_T Min (MHz)	100
R_{CE (SAT)} (m)	-

Description

PNP transistor BC857AT in an SC-75 plastic package.

NPN complements: BC846T and BC847T.
