BCP55-16

Transistors Bipolar (BJT) NPN Medium Voltage

product image

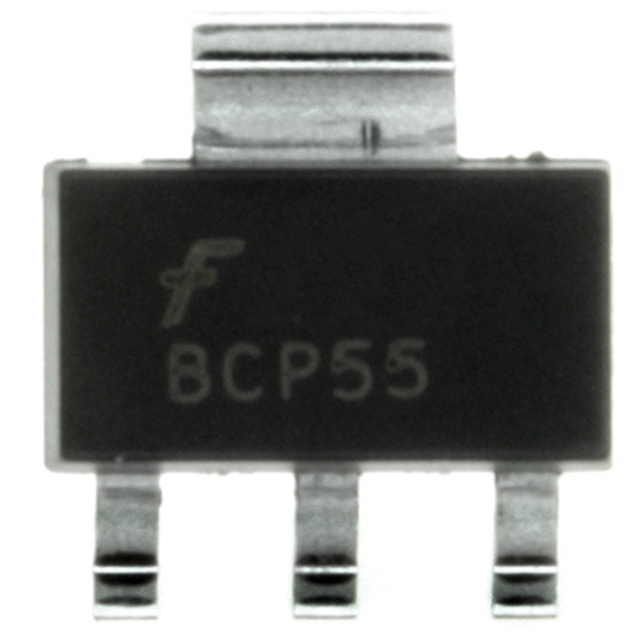

BCP55-16 Picture
See larger image
SeekIC No. : 00211654 Detail

BCP55-16: Transistors Bipolar (BJT) NPN Medium Voltage

BCP55-16 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BCP55-16
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : NPN Collector- Emitter Voltage VCEO Max : 60 V
Emitter- Base Voltage VEBO : 5 V Maximum DC Collector Current : 1 A
DC Collector/Base Gain hfe Min : 40 Configuration : Single
Maximum Operating Frequency : 120 MHz Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : SOT-223
Packaging : Reel

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Collector- Emitter Voltage VCEO Max : 60 V
Emitter- Base Voltage VEBO : 5 V
Package / Case : SOT-223
Maximum DC Collector Current : 1 A
DC Collector/Base Gain hfe Min : 40
Maximum Operating Frequency : 120 MHz


Specifications

Parameter Symbol BCP54 BCP55 BCP56 Unit
Collector-emitter voltage VCEO

45

 60 80
V
Collector-emitter voltage RBE 1k VCER 45 60 100
Collector-base voltage VCBO 45 60 100
Emitter-base voltage VEBO 5 5 5
DC collector current IC 1
A
Peak collector current ICM 1.5
Base current IB 100
mA
Peak base current IBM 200
Total power dissipation, TS = 124 °C Ptot 1.5
W
Junction temperature Tj 150
oC
Storage temperature Tstg -65...150
