Purchase BD1396S, In-stock BD1396S From SeekIC.

MFG:Fairchild Semiconductor  Category:Discrete Semiconductor Products

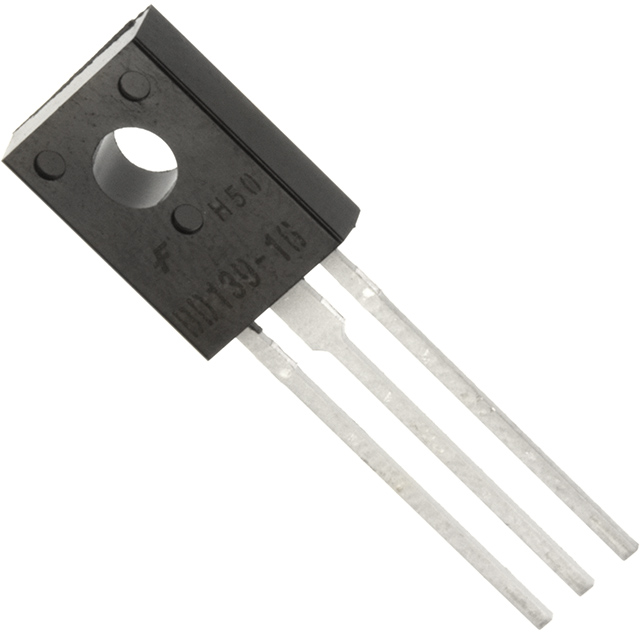

BD1396S Product Image

BD1 Series Datasheet download

Five Points

Part Number: BD1396S

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor





Descriptions: TRANSISTOR NPN 80V 1.5A TO-126

Price Break

2000

Unit Price

.11700

Extended Price

234.00

(All prices are in USD) Prices for reference only
Urgent Purchase

BD1396S General Description

TRANSISTOR NPN 80V 1.5A TO-126

BD1396S Parameters

Technical/Catalog InformationBD1396S
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)1.5A
Power - Max1.25W
DC Current Gain (hFE) (Min) @ Ic, Vce40 @ 150mA, 2V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Frequency - Transition-
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-126
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
