Five Points

Part Number: BD4741G



MFG: ROHM

Package Cooled: SOT-353



Description: [ Product description ] ?ROHM's bipolar reset ICs were specifically designed to prevent malfunctions in CPU and logic powe...


Urgent Purchase

BD4741G General Description



[ Product description ]

?ROHM's bipolar reset ICs were specifically designed to prevent malfunctions in CPU and logic power supplies during ON/OFF switching or momentary interruptions. The 3-terminal configuration (supply, Ground, and reset output) enables detection of various system voltages as well as reset signal output. Additional features include a compact package and low current consumption, making them ideal for portable devices. The entire series is of course both lead-free and RoHS-compliant.

BD4741G Maximum Ratings

Voltage detection precision (%) ±1% Voltage detection (V) 4.1 Operating temperature range (ºC) -20 to 75 Detection step (V) 0.1 Output type Open collecter "H"Counter timer delay time setting - Circuit current (µA) ON 1.5 OFF 1.6 Hysteresis voltage - "L"Output current VDD=1.2V - VDD=2.4V -

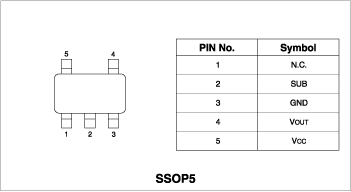

BD4741G Connection Diagram

BD4741G Image
