Features:

• Low current (max. 50 mA)
• High voltage (max. 300 V).


Application

• Telephony.


Pinout

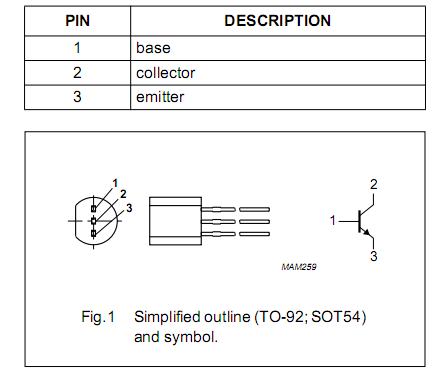

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter - 250 V
VCEO collector-emitter voltage open base - 250 V
VEBO emitter-base voltage open collector - 5 V
IC collector current (DC)   - 50 mA
ICM peak collector current   - 100 mA
IBM peak base current   - 50 mA
Ptot total power dissipation Tamb 25; note 1 - 625 mW
Tstg storage temperature   −65 +150
Tj junction temperature   - 150
Tamb operating ambient temperature   −65 +150
Note
1. Transistor mounted on an FR4 printed-circuit board.


Description

NPN high-voltage transistor BF422L in a TO-92; SOT54 plastic package. PNP complements: BF421L and BF423L.
