General Description

NPN transistor in a SOT23 plastic package.

Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO

collector-base voltage


 open emitter - 40
V
VCEO collector-emitter voltage
 open base - 15
V
VEBO emitter-base voltage open collector - 4.5 V
IC collector current (DC)   - 100 mA
ICM peak collector current   - 200 mA
Ptot total power dissipation Tamb ≤ 25 ℃ - 250 W
Tstg storage temperature   −65 +150  ℃
Tj junction temperature   - 150  ℃
Tamb operating ambient temperature   −65 +150  ℃

Features

• Low current (max. 100 mA)
• Low voltage (max. 15 V)
• Low feedback capacitance (max. 2.2 pF).

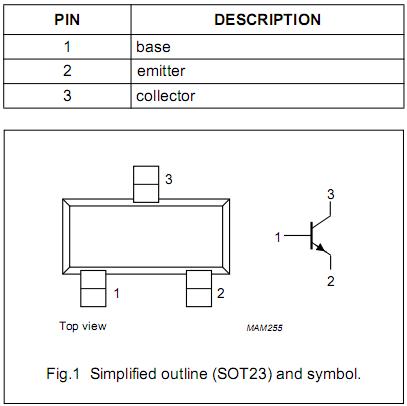

Connection Diagram
